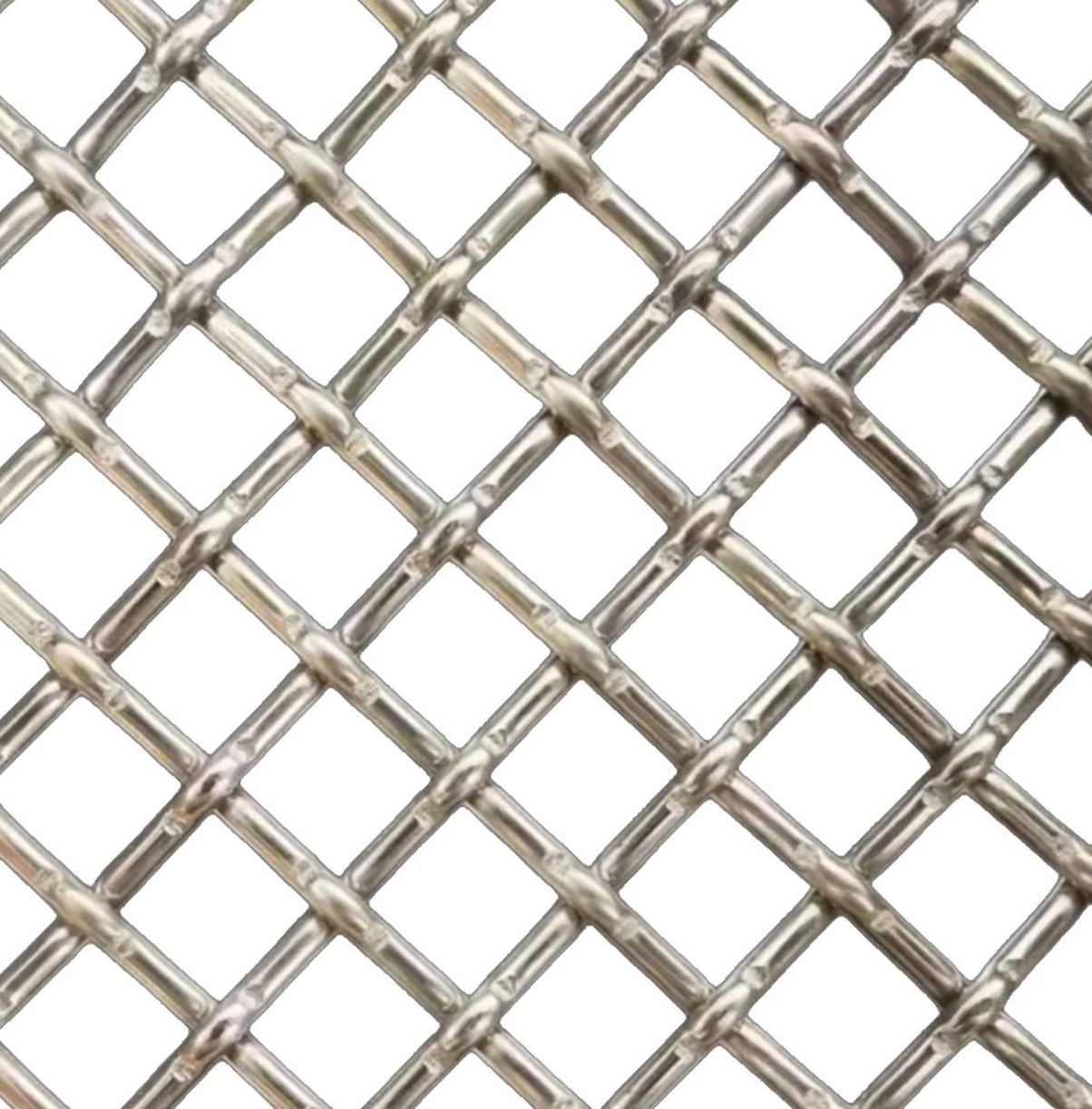

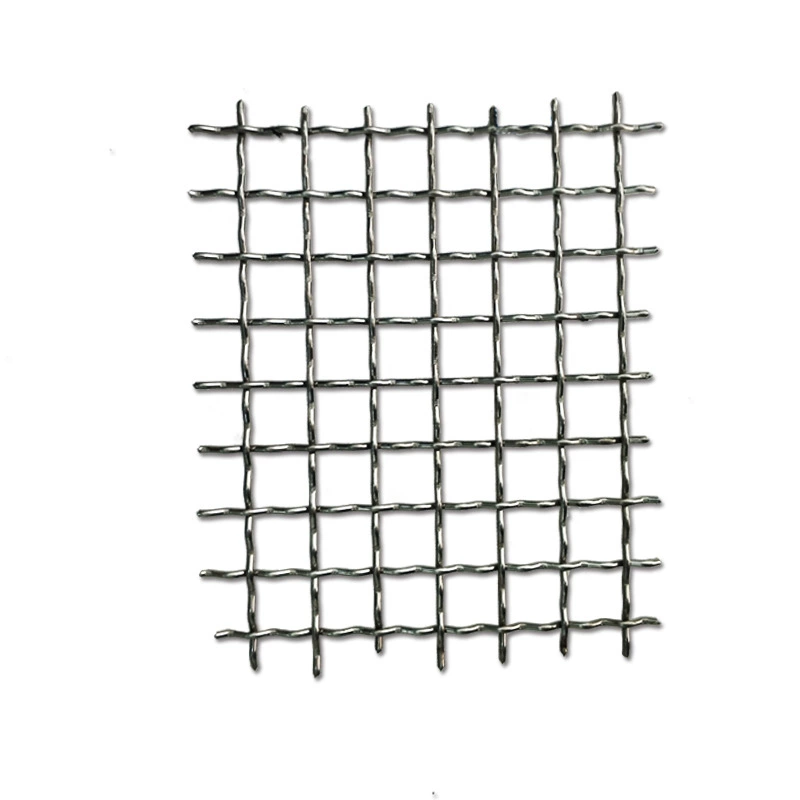

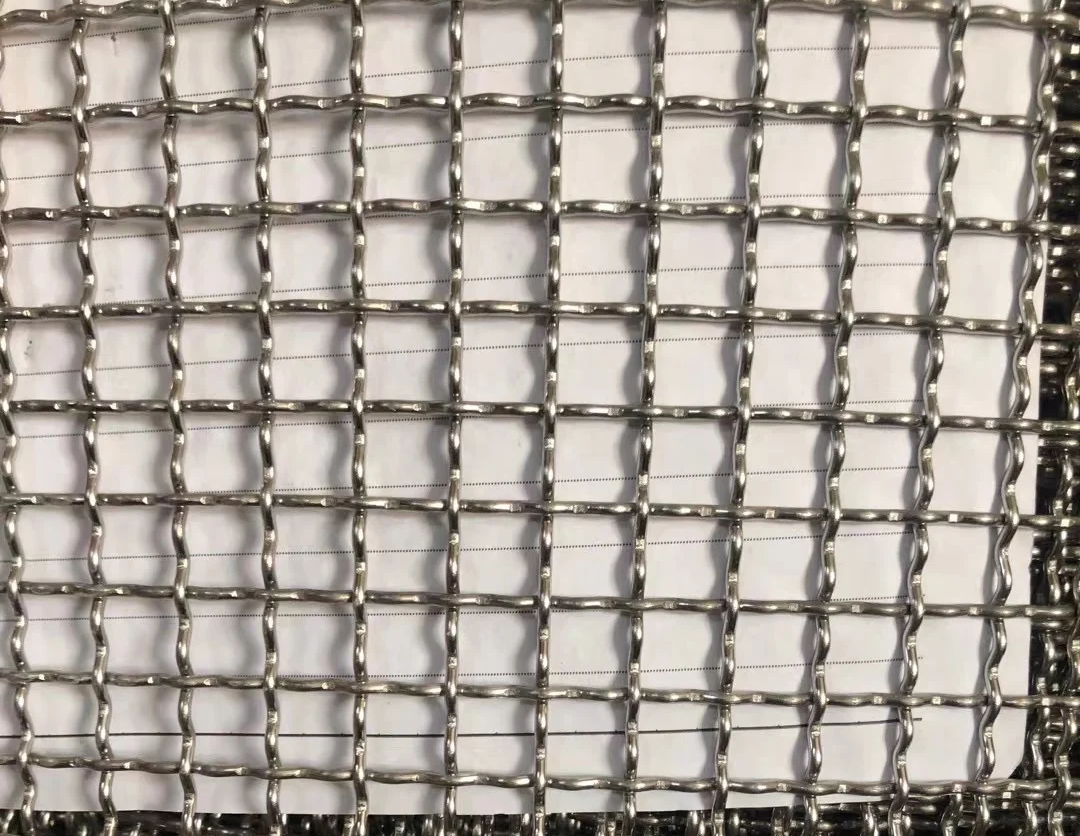

imped wire mesh is widely adopted in industries requiring heavy duty screening particle separation and safety protection. Wires are pre crimped before weaving to lock each wire in position preventing shifting under vibration. Architects and mining equipment designers often match this woven mesh with Decorative Perforated Panels for combined screening and facade decoration solutions. Structural design references for metal screen panels can be found in technical documents published by ASCE Engineering.
Common application scenarios for crimped wire mesh include mining aggregate screening quarry sifting grain separation mechanical equipment guards architectural decorative mesh barbecue mesh and animal enclosure fencing. The locked crimp structure delivers stable aperture size and excellent wear resistance with easy cutting and bending fabrication. For complete industrial screening system design many specifiers pair this mesh with Anti-Slip Perforated Panels to meet multi-functional safety requirements. Tolerance standards for woven wire cloth are defined by ISO Standards.
Crimped Wire Mesh Standard Parameters
Custom cutting bending and cut-to-size sheet service are available.
| Mesh Count | Aperture (mm) | Wire Diameter (mm) |
|---|
| 2 mesh | 10.90 | 1.80 |
| 3 mesh | 6.86 | 1.60 |
| 4 mesh | 4.75 | 1.60 |
| 6 mesh | 3.35 | 1.19 |
| 8 mesh | 2.46 | 0.89 |
| 10 mesh | 1.91 | 0.64 |
| 12 mesh | 1.30 | 0.58 |
| 14 mesh | 1.30 | 0.51 |
| 16 mesh | 1.30 | 0.46 |
| 18 mesh | 0.94 | 0.41 |
| 20 mesh | 0.61 | 0.40 |
| 40 mesh | 0.27 | 0.25 |
Standard roll width 1000mm 1220mm 1500mm 2000mm Standard roll length 30m 50m 100m
Cut sheet sizes 1000×2000mm 1220×2440mm 1250×2500mm 1500×3000mm
Material options SS304 304L 316 316L stainless steel 65mn manganese steel galvanized mild steel brass wire
Pattern options Pre crimped weave square opening
Surface treatment Hot dipped galvanized electro polished pickling passivation
Readers can learn metal wire weaving techniques from technical guides released by Metal Construction Association.
When selecting crimped wire mesh mesh count aperture and wire diameter must match screening or protection requirements. Larger aperture is used for coarse aggregate separation thicker wire provides higher impact resistance for heavy load mining environments. The pre crimp layout fixes wire positions and keeps mesh geometry stable under continuous vibration. Research on screening performance of woven metal mesh can be explored in research papers published by Acoustical Society of America. Long term metal corrosion performance data is documented in Corrosion Science Journal.
Our crimped wire mesh complies with global woven wire cloth specifications. Stainless steel mesh follows ASTM E2016 weaving tolerance complies with ISO 9044. Mining and architectural screen application references are introduced on Architectural Digest. All finished mesh rolls and cut sheets pass dimensional inspection before shipment. Coating inspection specifications are defined by Society for Protective Coatings.
A quarry manufacturer previously used ordinary woven mesh for stone screening. Wires moved easily under vibration causing hole deformation and frequent replacement. They switched to our 65mn crimped wire mesh of 4 mesh. Pre crimp locked structure maintained consistent opening size and 65mn manganese steel offered superior wear resistance. Welding and assembly guidance for metal mesh assemblies can be found at American Welding Society. Material tensile load testing methodology can be checked on National Institute of Standards and Technology.
Crimped wire mesh delivers reliable heavy duty screening and protective performance for mining agricultural and architectural projects. Precision pre crimp weaving guarantees uniform square hole shape and consistent aperture size. This mesh can be cut bent and fabricated into custom screening panels or decorative screens. Stainless manganese steel or galvanized materials can be selected according to different working environments. Installation manuals for metal screen cladding are published by Sheet Metal and Air Conditioning Contractors' National Association.
Material mechanical test results can be reviewed in Journal of Materials Engineering and Performance. Building specifiers can get screen facade design advice from Construction Specifier Magazine. Structural metal panel research papers are published by International Journal of Steel Structures. Metal fabrication engineering resources are hosted by Steel Construction Institute.
Crimped wire mesh pre crimped woven wire cloth stainless steel crimped mesh galvanized crimped wire mesh 65mn crimped screen mining sieve mesh aggregate screening mesh grain separating mesh equipment guard crimped mesh architectural decorative crimped mesh barbecue wire mesh animal enclosure mesh custom cut crimped wire mesh crimped mesh 1220mm width crimped mesh roll 30m 2mesh heavy crimped screen 3mesh quarry sieve mesh 4mesh aggregate crimped cloth 6mesh stone screening mesh 8mesh grain sieve mesh 10mesh protective crimped screen 12mesh decorative metal mesh 14mesh stainless crimped cloth 16mesh woven crimped screen 18mesh fine separation mesh 20mesh filter crimped mesh 40mesh ultra fine crimped cloth ISO certified crimped wire mesh ASTM woven wire cloth custom woven crimped mesh manufacturer wire mesh supplier China heavy duty vibrating screen mesh industrial protective metal screen
Looking for crimped wire mesh with custom mesh count wire diameter or cut sheet size Send your screening requirements our engineering team will provide free technical assessment and competitive quotation for your pre crimped woven wire cloth project
