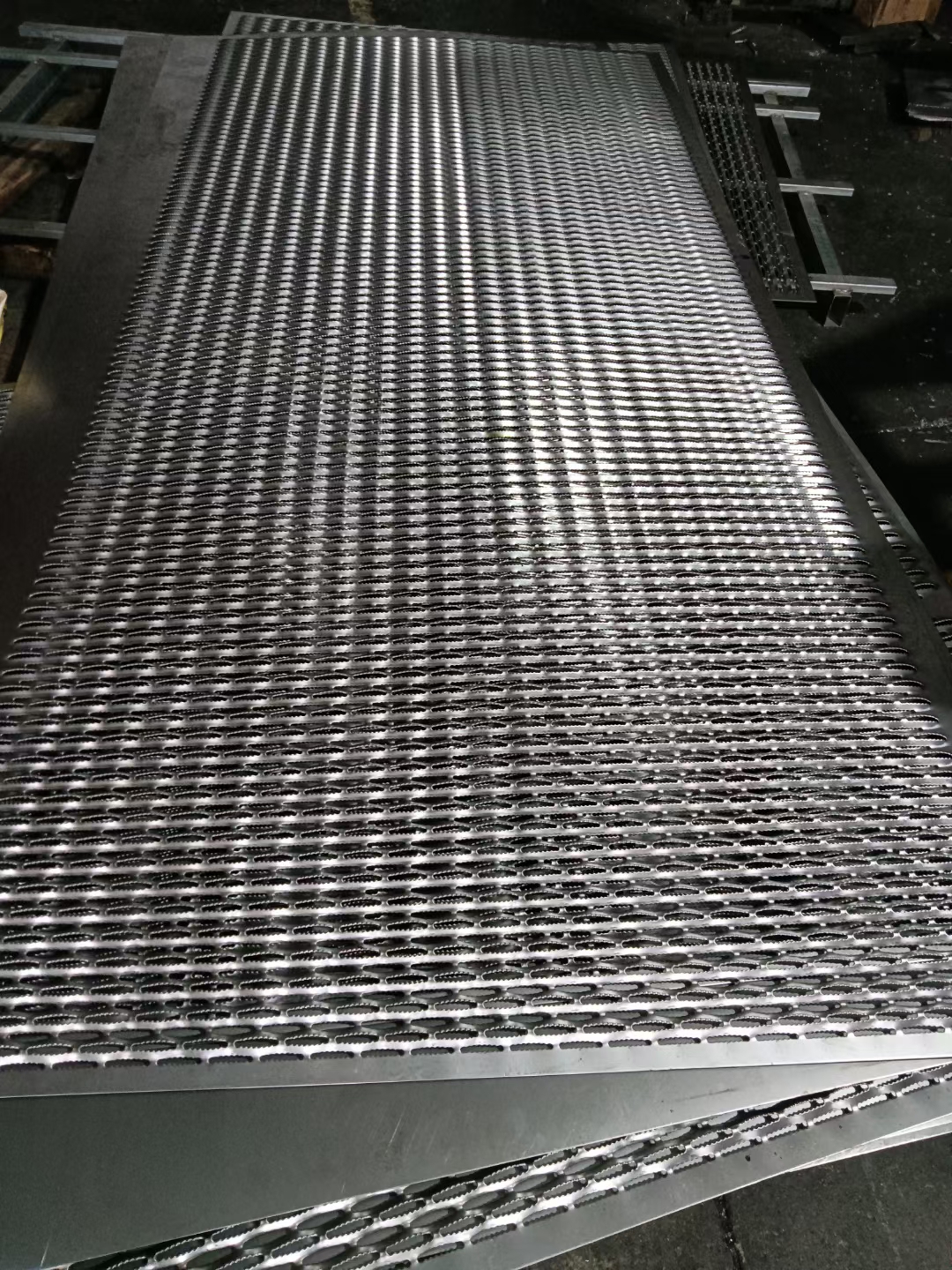

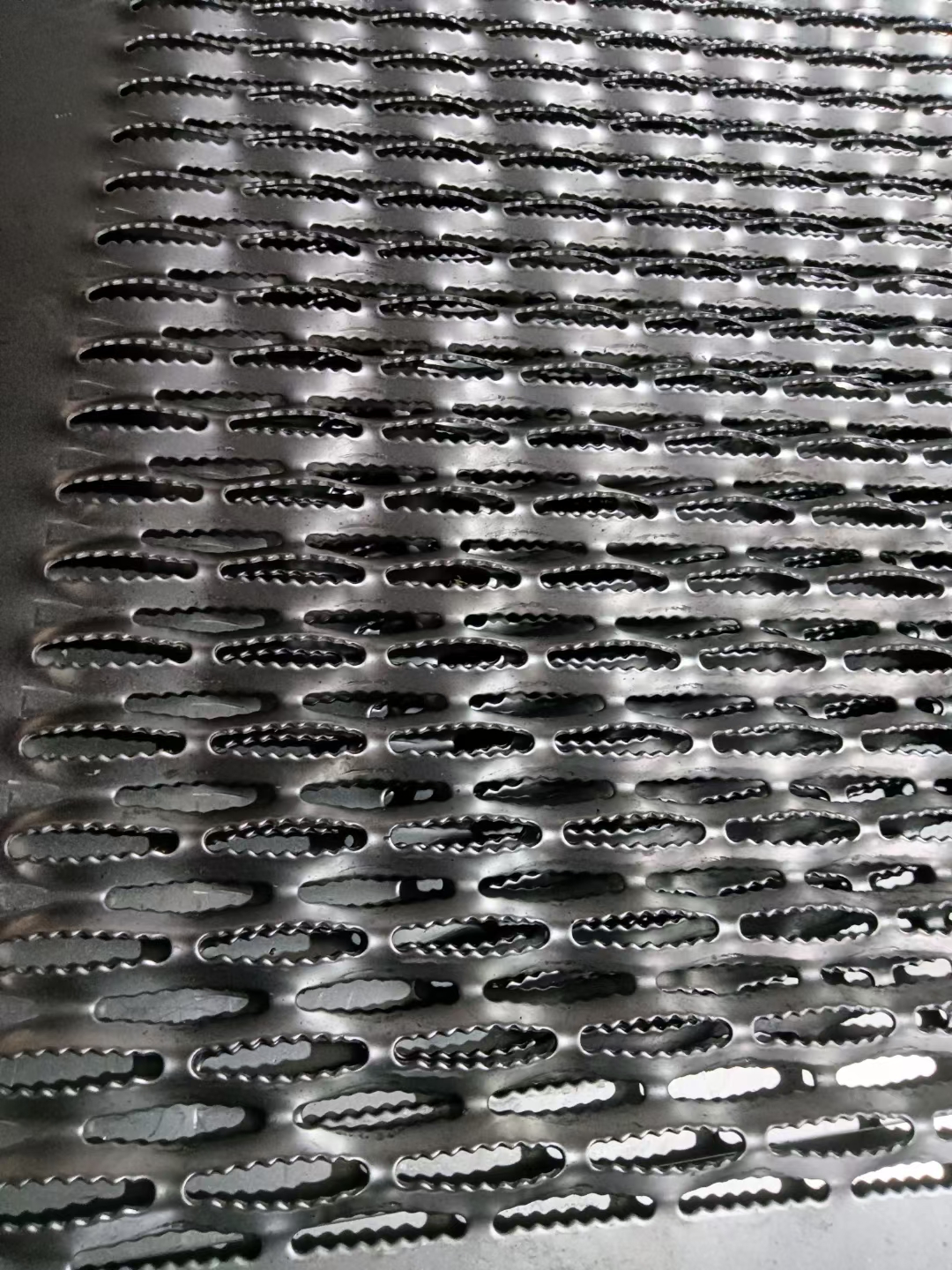

Crocodile mouth anti-slip perforated plate is widely used in industrial areas where safe pedestrian passage is required on wet, dusty or oily surfaces. Its unique raised serrated crocodile-mouth design creates strong multi-direction grip and allows liquid and fine debris to pass through. Architects and project managers often match this plate with Decorative Perforated Panels for combined platform and facade construction projects. Structural design references for metal walkway panels can be found in technical documents published by ASCE Engineering.
Common application scenarios for crocodile mouth anti-slip metal include factory catwalks, stair treads, offshore platform walkways, marine deck plates, equipment maintenance platforms, sewage plant access routes and vehicle ramp pedals. The straight-row hole layout ensures consistent anti-slip performance and simple cutting & bending processing. For complete safety walkway system design, many specifiers pair this plate with Anti-Slip Perforated Panels to satisfy multi-scenario safety requirements. Tolerance standards for sheet metal punching fabrication are defined by ISO Standards.
Crocodile mouth anti-slip perforated plate standard parameters. Custom punching, bending and cut-to-size service are available.
| Hole Size (L×W, mm) | Pitch (Row Center Spacing, mm) | Recommended Plate Thickness (mm) |
|---|
| 5×10 | 20 | 2.0–2.5 |
| 6×12 | 25 | 2.0–3.0 |
| 8×16 | 30 | 2.5–3.0 |
| 10×20 | 35 | 3.0–4.0 |
| 15×30 | 40 | 4.0–5.0 |
| 17×35 | 45 | 5.0–6.0 |
Standard full sheet dimensions: 1000×2000mm, 1220×2440mm, 1250×2500mm, 1500×3000mm.
Material options: Hot dipped galvanized steel, Q235 carbon steel, aluminum alloy, SS304 stainless steel.

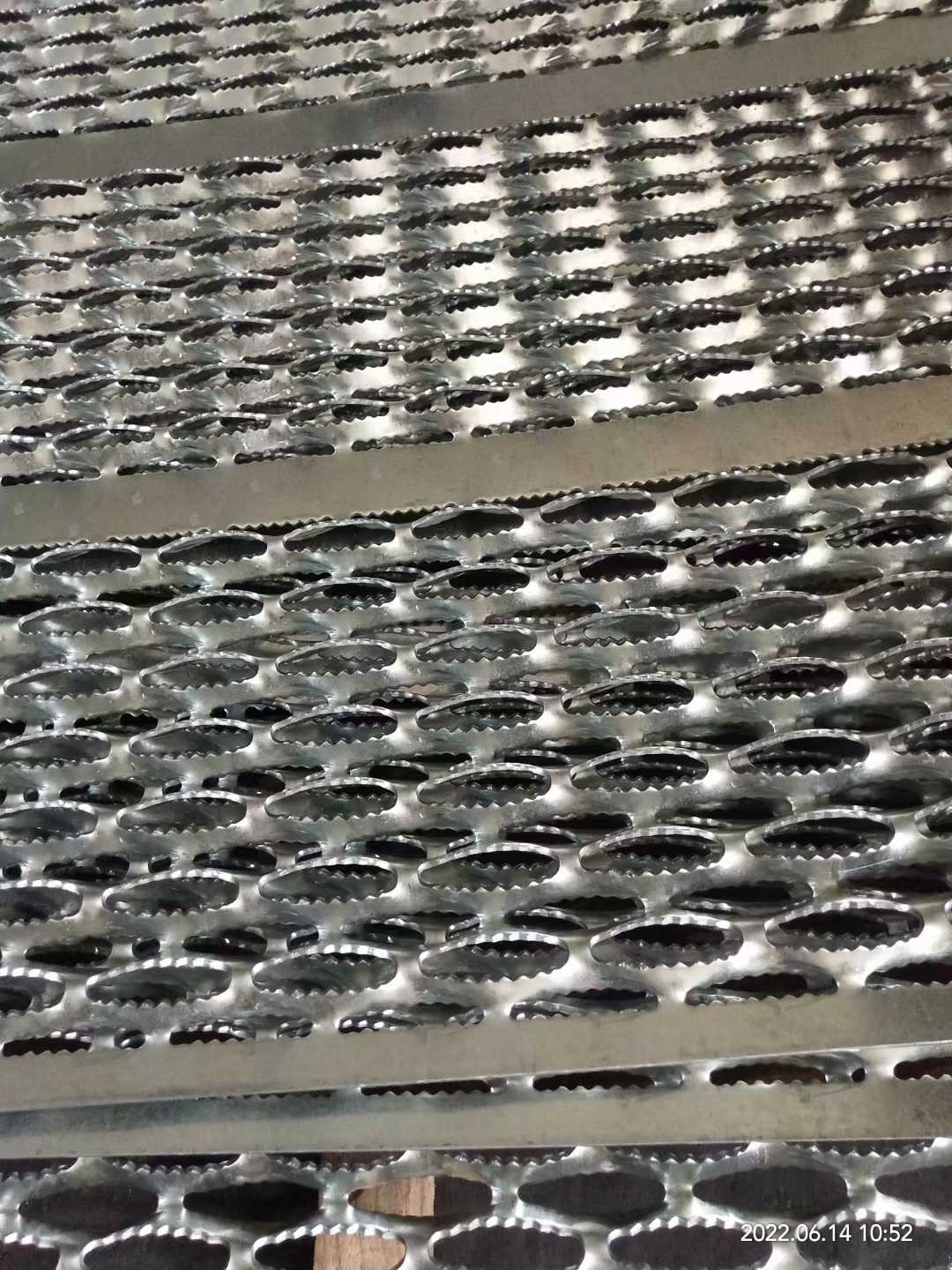

Pattern options: Straight row crocodile mouth serrated hole arrangement.
Surface treatment: Hot dipped galvanized, powder coated, natural aluminum, brushed stainless steel.
Readers can learn metal punching and forming techniques from technical guides released by Metal Construction Association.
When designing projects with crocodile mouth anti-slip perforated plate, plate thickness, hole dimension and row pitch must match the expected load capacity. Larger crocodile-mouth protrusions provide stronger anti-slip grip but require thicker base metal to prevent deformation under heavy loads. The straight-row layout evenly distributes point loads and improves overall panel rigidity. Research on acoustic properties of perforated metal panels can be explored in research papers published by Acoustical Society of America. Long-term galvanized coating corrosion performance data is documented in Corrosion Science Journal.
Our crocodile mouth anti-slip perforated plates comply with global construction and metal material specifications. Galvanized base material follows ASTM A653 coating requirements, and hot dip galvanizing quality follows ISO 1461. Industrial platform application references are introduced on Architectural Digest. All finished sheets pass dimensional and visual inspection before shipment. Coating inspection specifications are defined by Society for Protective Coatings.
A chemical plant previously used flat checker plate for outdoor maintenance walkways. In rainy weather, the flat plate became slippery, leading to frequent slip accidents and high maintenance costs. The plant replaced checker plate with our galvanized crocodile mouth anti-slip perforated plate with 8×16 crocodile holes. The serrated raised edges greatly improved foot traction, and holes drained rainwater and mud rapidly. Slip hazards were largely eliminated, and hot-dipped galvanized coating resisted outdoor corrosion. Welding and assembly guidance for perforated metal assemblies can be found at American Welding Society. Material load testing methodology can be checked on National Institute of Standards and Technology.

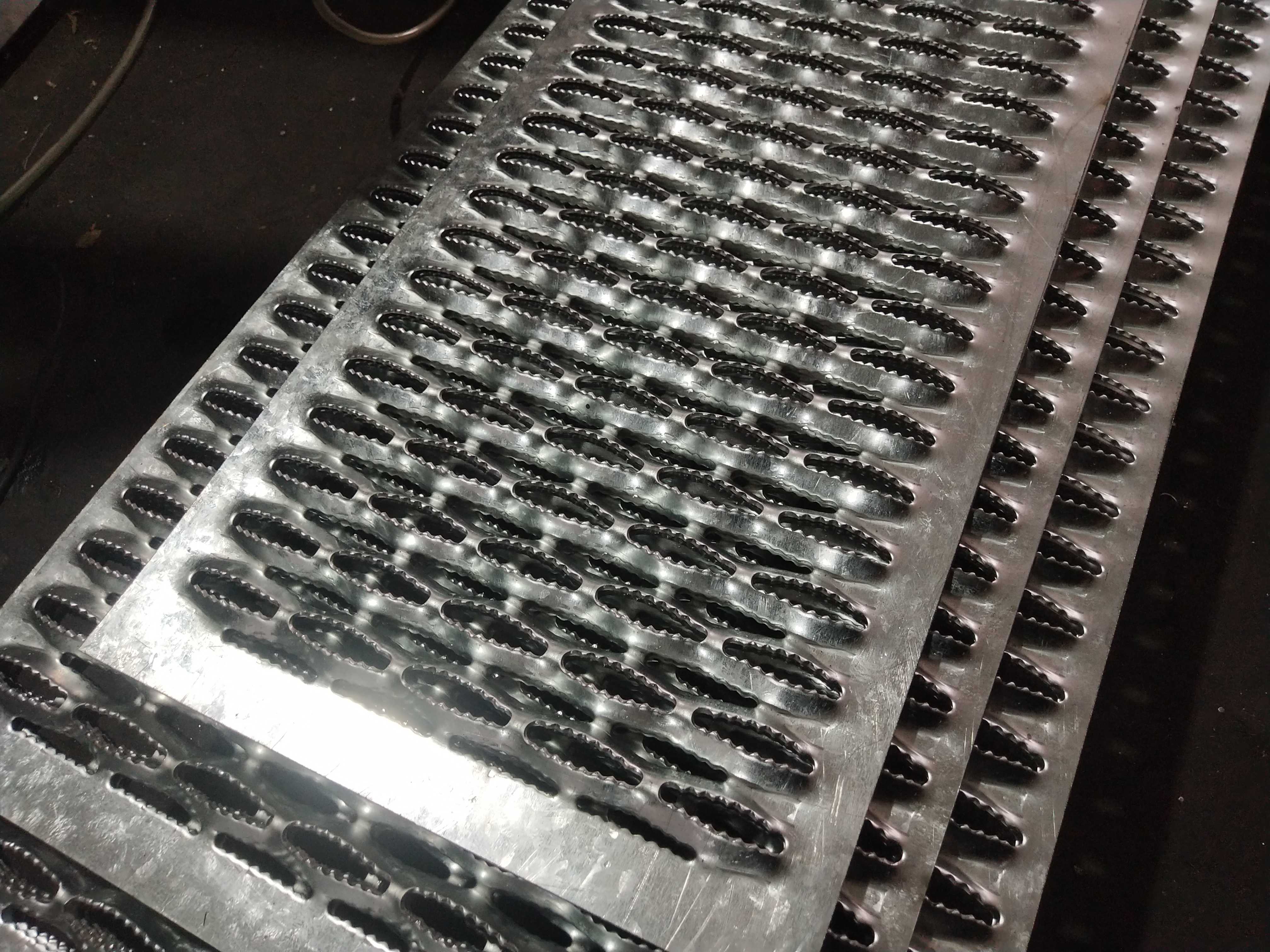

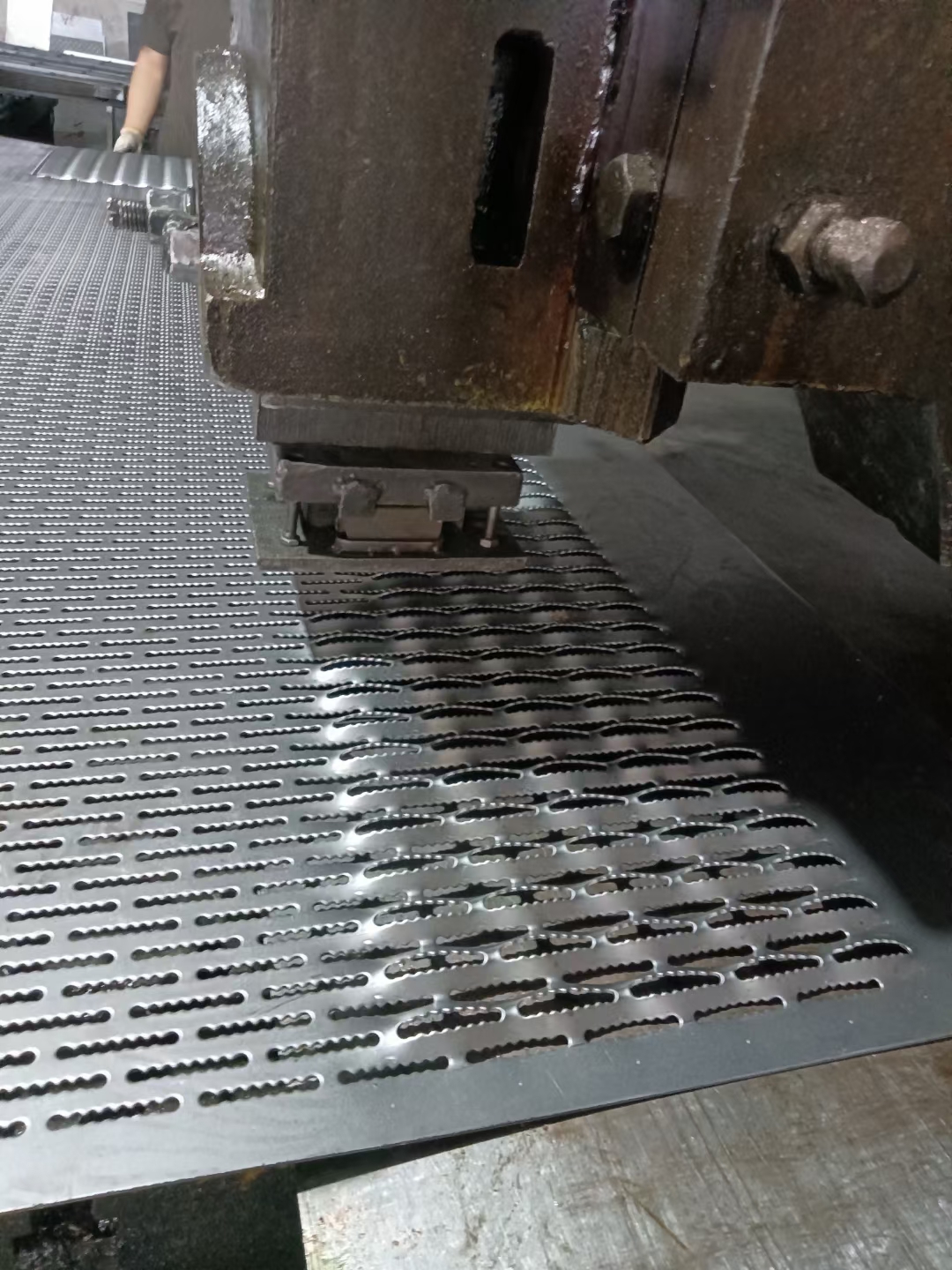

Crocodile mouth anti-slip perforated plate delivers reliable anti-slip and drainage performance for outdoor and industrial walkways. CNC precision punching ensures uniform serrated hole shape and consistent hole spacing. This plate can be cut, bent and fabricated into U-channel treads to fit custom platform or stair dimensions. Galvanized, aluminum or stainless substrates can be selected according to different corrosive environments. Installation manuals for sheet metal walkway cladding are published by Sheet Metal and Air Conditioning Contractors' National Association.
Material mechanical test results can be reviewed in Journal of Materials Engineering and Performance. Building specifiers can get platform design advice from Construction Specifier Magazine. Structural metal panel research papers are published by International Journal of Steel Structures. Metal fabrication engineering resources are hosted by Steel Construction Institute.
