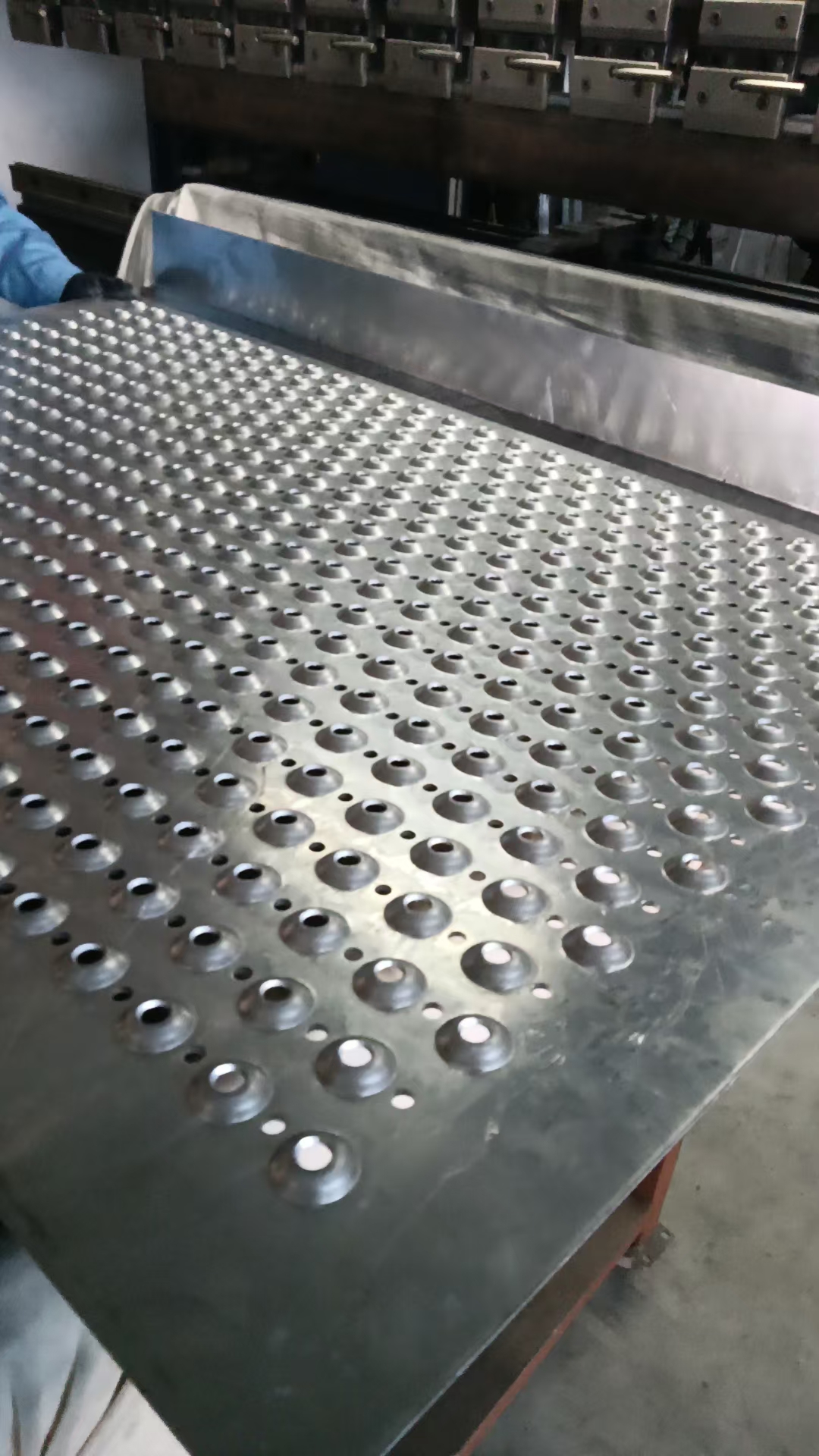

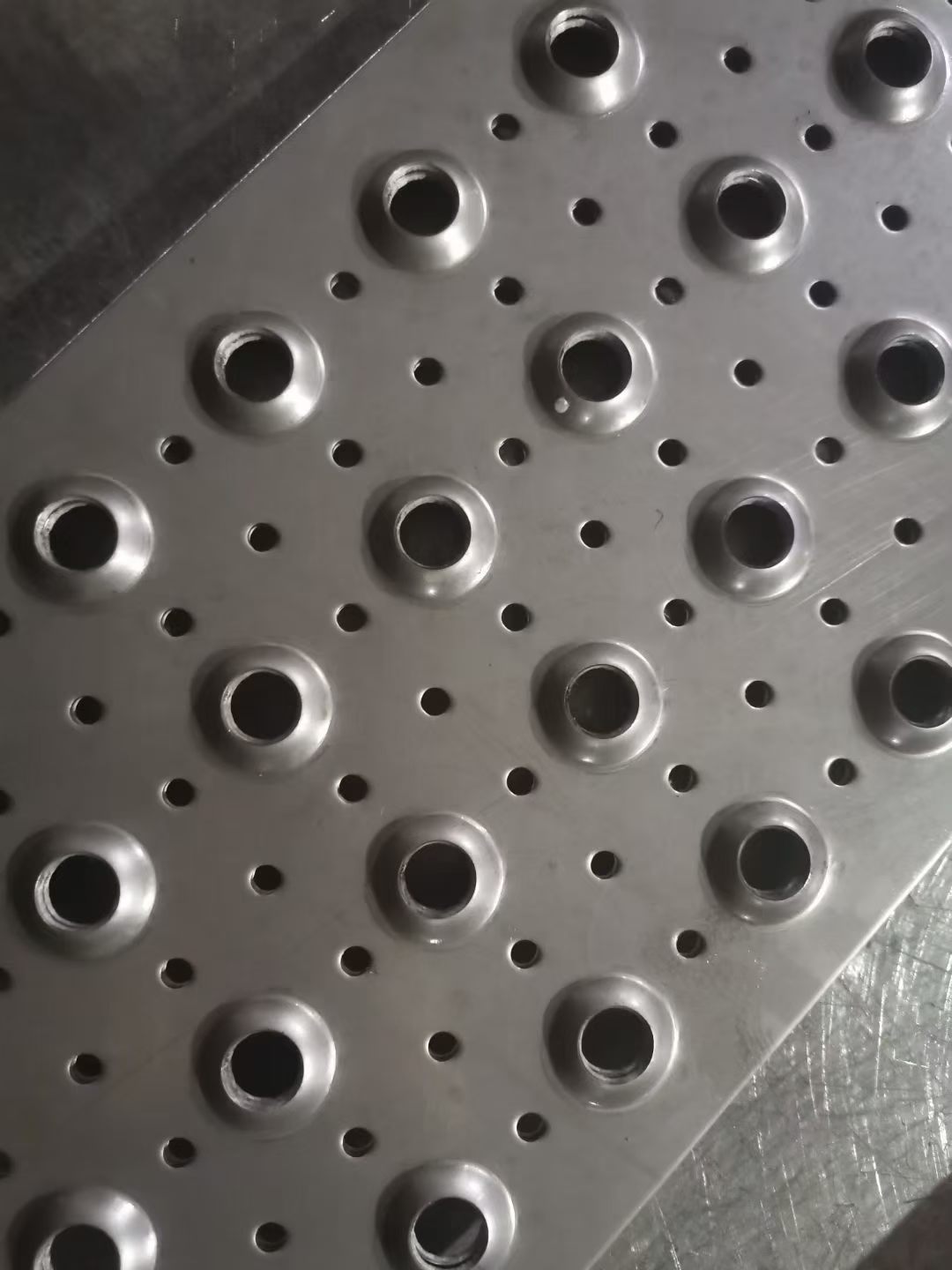

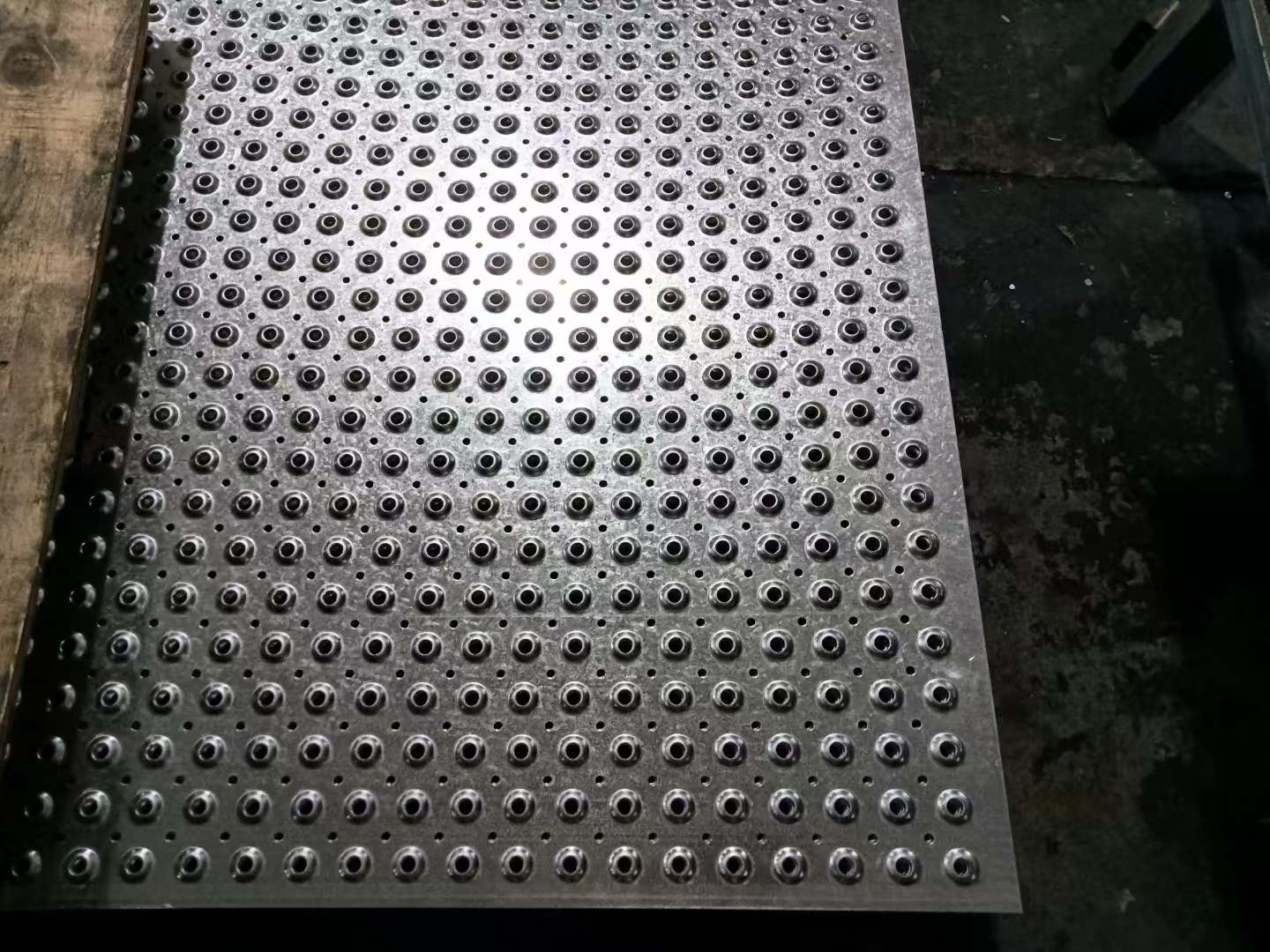

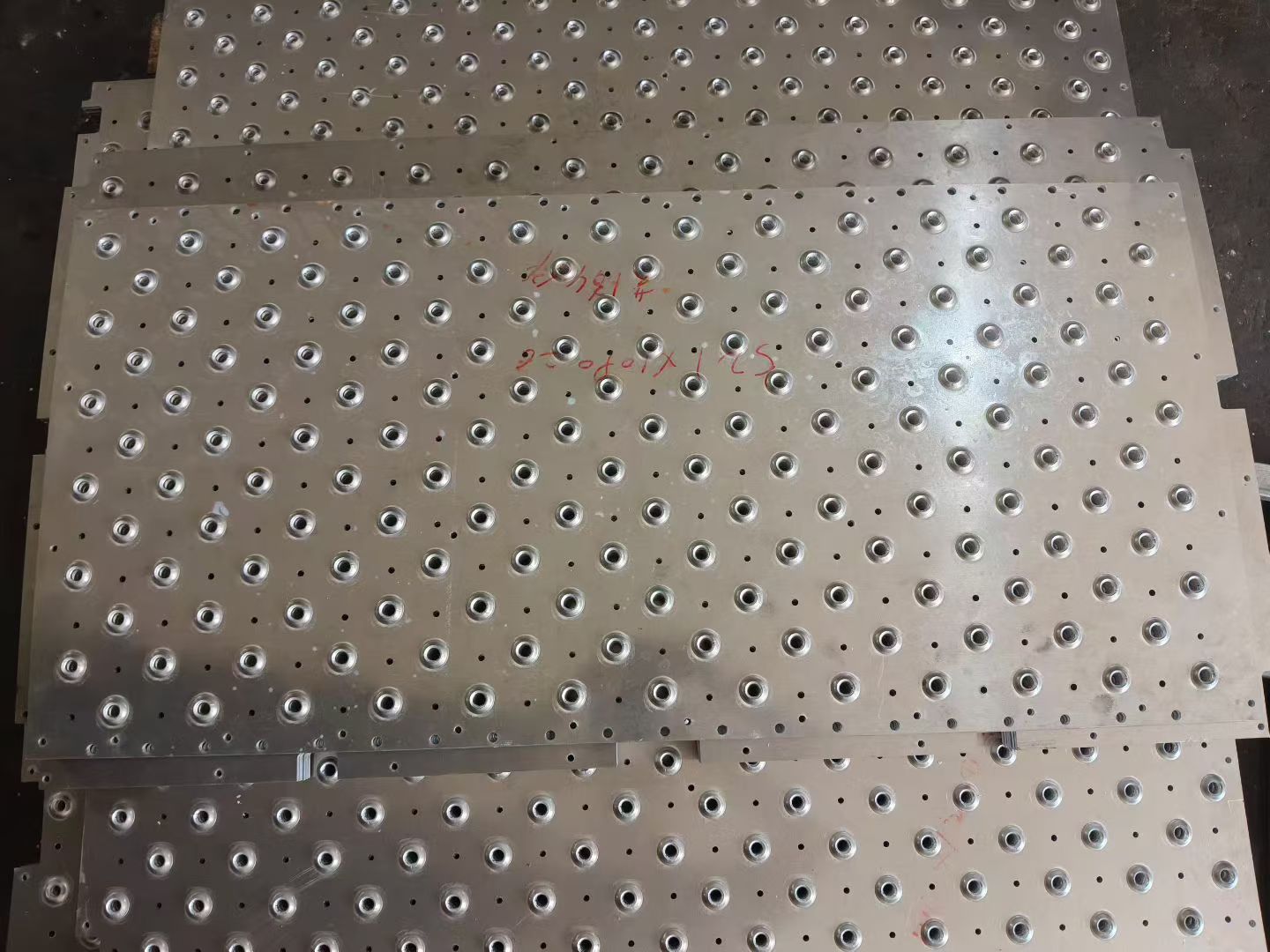

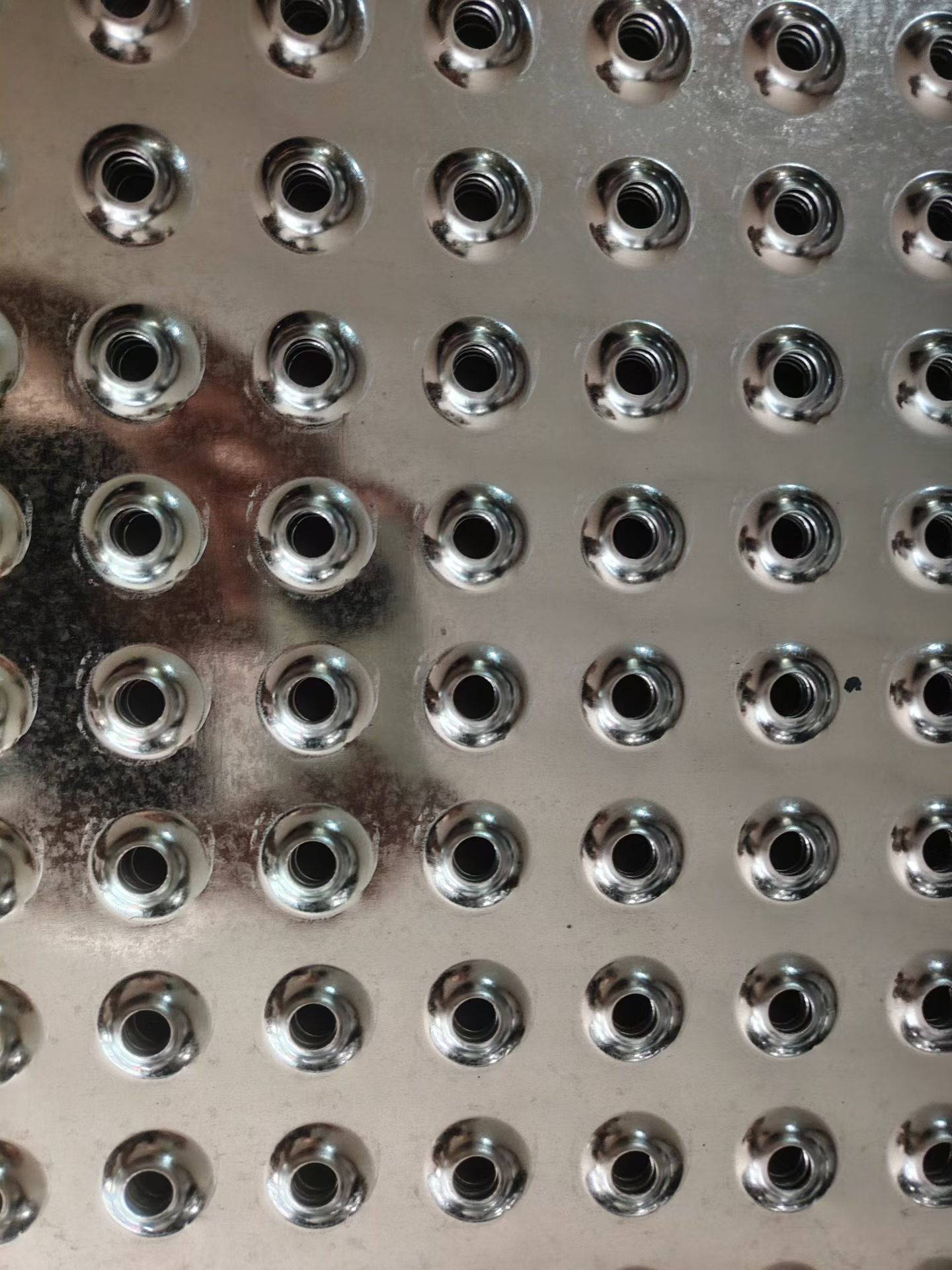

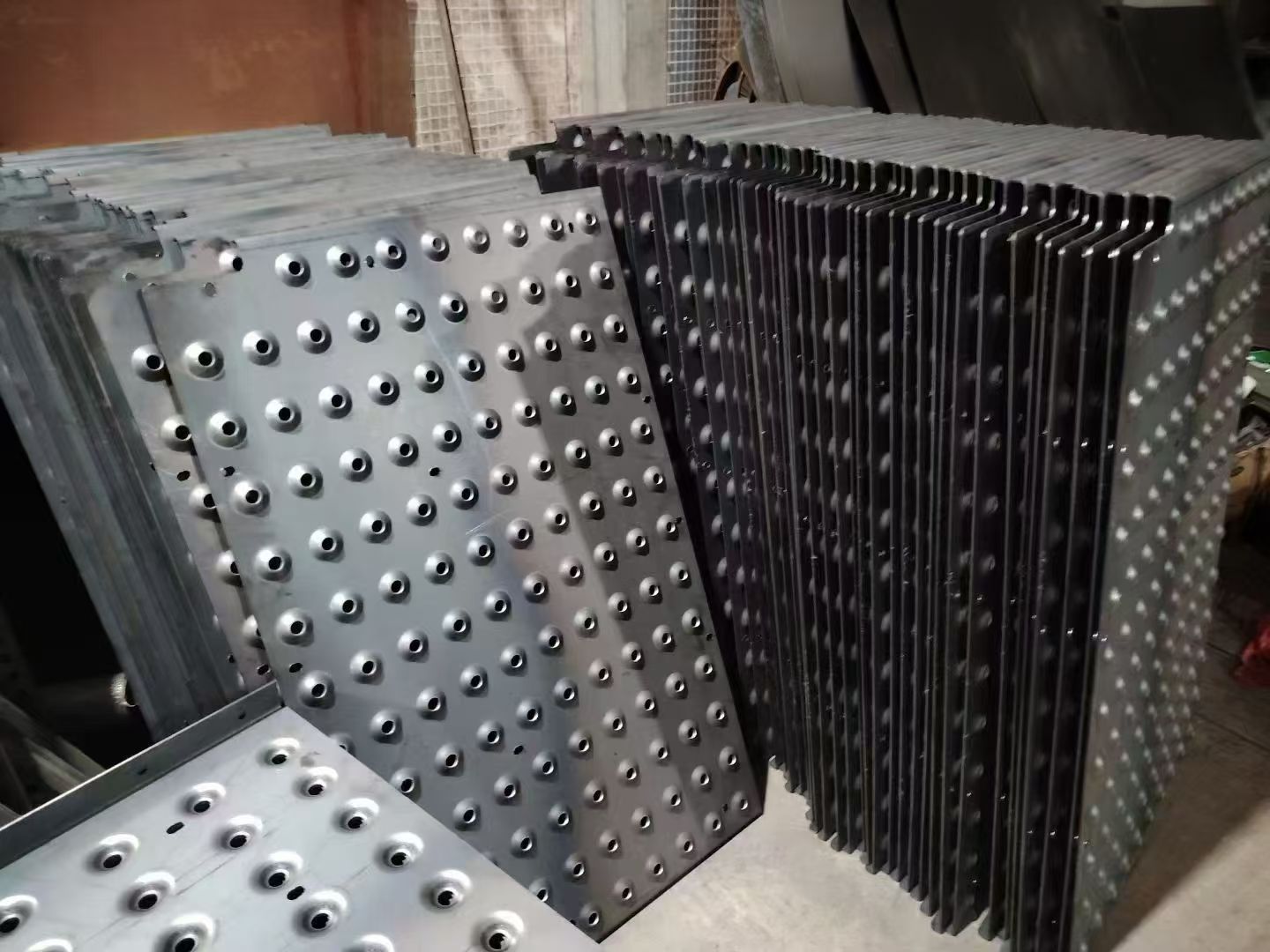

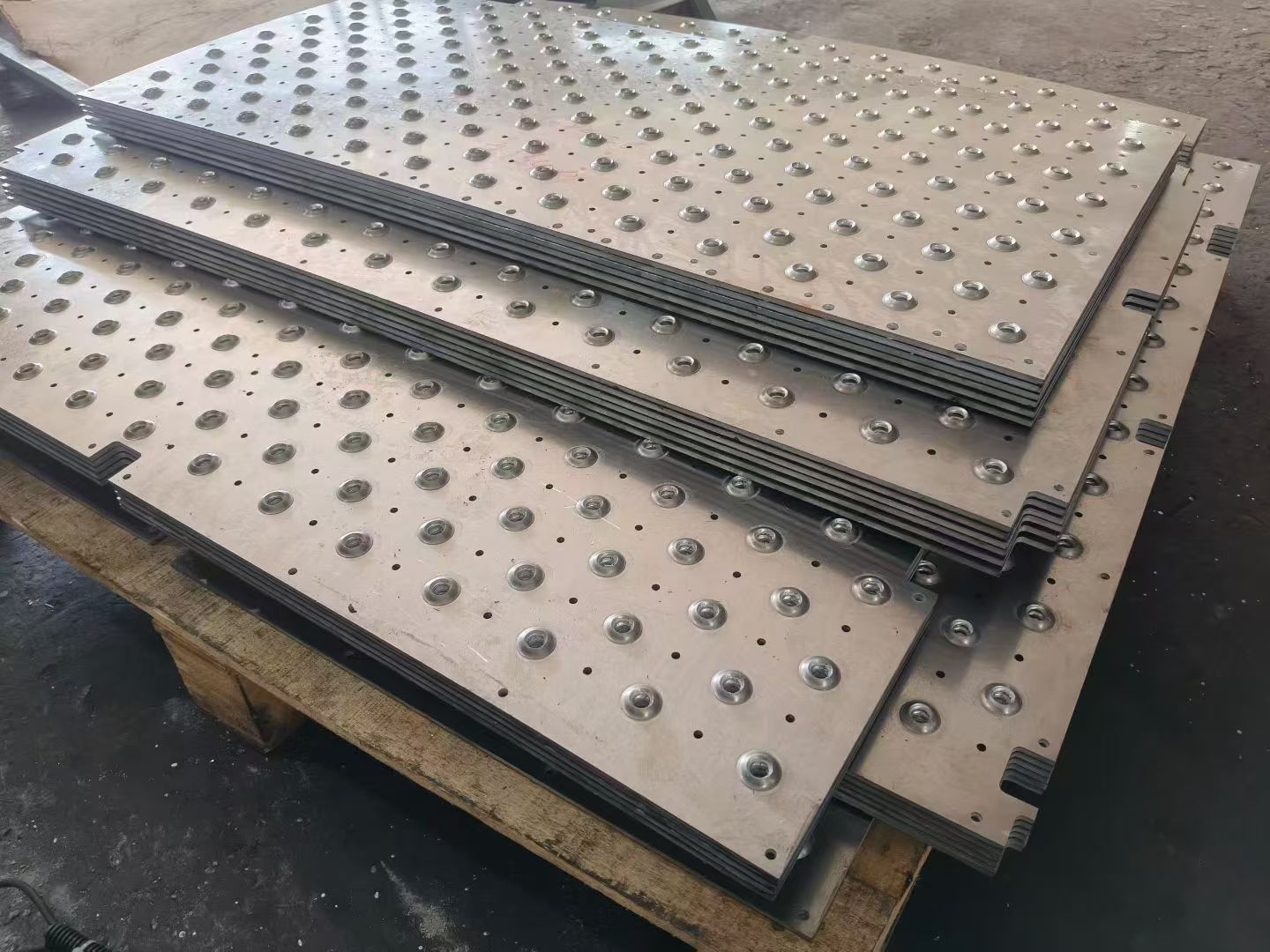

Fish eye anti-slip perforated sheet serves heavy-duty industrial environments where slip prevention and drainage are critical. Its unique raised dimple geometry creates multi-directional grip for pedestrian and light vehicle traffic. Architects and facility managers frequently combine this panel with Decorative Perforated Panels for hybrid safety and facade projects. Structural load calculation references can be sourced from publications by ASCE Engineering, which provides guidelines for metal floor panel design.
Common application scenarios for fish eye perforated metal include factory walkways, stair treads, offshore platform flooring, machinery maintenance platforms, chemical plant access routes and warehouse passageways. The small drain holes quickly remove oil, rainwater and fine debris to keep the surface dry. This self-cleaning characteristic reduces manual maintenance work. For full walkway system design, many designers pair this plate with Anti-Slip Perforated Panels for unified safety specifications. Fabrication best practices are available through ISO Standards for sheet metal production tolerances.
Fish eye anti-slip perforated sheet standard parameters. Custom punching patterns and cut-to-size service are supported.
| Top Drain Hole Diameter(mm) | Pitch(Center to Center, mm) | Raised Protrusion Height(mm) | Recommended Plate Thickness |
|---|
| Φ4 | 16 | 2 | 2.0–2.5 mm |
| Φ5 | 20 | 2.5 | 2.0–3.0 mm |
| Φ6 | 25 | 3 | 2.5–3.0 mm |
| Φ8 | 30 | 3.5 | 3.0–4.0 mm |
| Φ10 | 40 | 4 | 4.0–6.0 mm |
| Φ12 | 50 | 5 | 5.0–6.0 mm |
Standard full sheet dimensions: 1000×2000mm, 1220×2440mm, 1250×2500mm, 1500×3000mm.
Material options: Hot dipped galvanized steel, carbon steel, SS304 stainless steel.
Pattern options: 60° staggered / quincunx arrangement.
Surface treatment: Hot dipped galvanized, plain steel, brushed stainless steel.
Readers can review metal panel manufacturing guidelines published by Metal Construction Association to learn about forming and stamping techniques.
When designing projects with fish eye anti-slip perforated sheet, plate thickness, dimple height and center pitch must be matched with expected load weight. Larger fish-eye protrusions offer superior anti-slip grip but require thicker base metal to avoid bending under heavy loads. The staggered quincunx hole layout evenly distributes point loads and improves panel rigidity. Acoustical performance of perforated metal panels can be explored in research papers released by Acoustical Society of America. Long-term galvanized coating corrosion data is documented in Corrosion Science Journal.
Our fish eye perforated steel plates comply with globally accepted construction and metal material standards. Raw galvanized substrate follows ASTM A653 coating specifications, and hot dip galvanizing quality follows ISO 1461. Architectural application references are featured on Architectural Digest for industrial aesthetic design. All finished sheets pass dimensional and visual inspection before shipment. Coating quality inspection rules are defined by Society for Protective Coatings.
A chemical processing plant previously used smooth checker plate for production floor walkways. When chemical fluid spilled, the flat surface became slippery, creating frequent fall hazards and costly shutdowns. The plant switched to our galvanized fish eye anti-slip perforated sheet with Φ6 drain holes. The raised fish-eye bumps increased foot traction, and perforations drained spilled liquids rapidly. Slip incidents decreased dramatically, and the hot-dipped galvanized coating resisted corrosive vapors. Welding and assembly guidance for perforated metal assemblies can be found at American Welding Society. Load testing methodology data is available on the site of National Institute of Standards and Technology.
Fish eye anti-slip perforated sheet delivers practical advantages for industrial safety flooring. CNC precision stamping ensures uniform dimple height and consistent hole spacing. The panel supports cutting, bending and custom forming to fit irregular platform layouts. Galvanized or stainless substrates provide long service life in humid, salty or chemically aggressive environments. Sheet metal installation guidance can be found in manuals published by Sheet Metal and Air Conditioning Contractors' National Association.
Material mechanical test results are available in Journal of Materials Engineering and Performance. Construction specifiers can read panel design advice in Construction Specifier Magazine. Structural metal panel research is published by International Journal of Steel Structures. Fabrication engineering resources are hosted by Steel Construction Institute.
