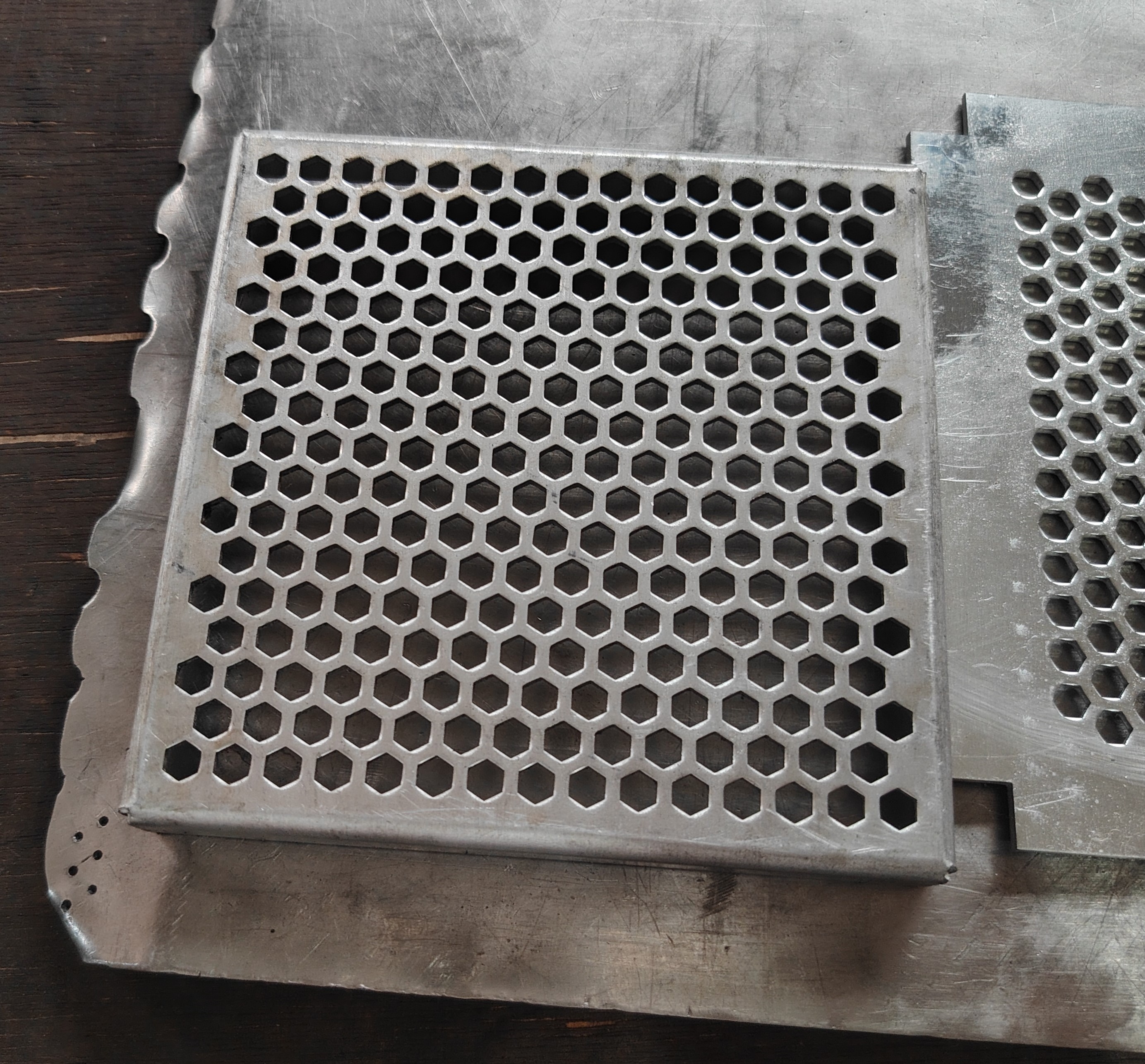

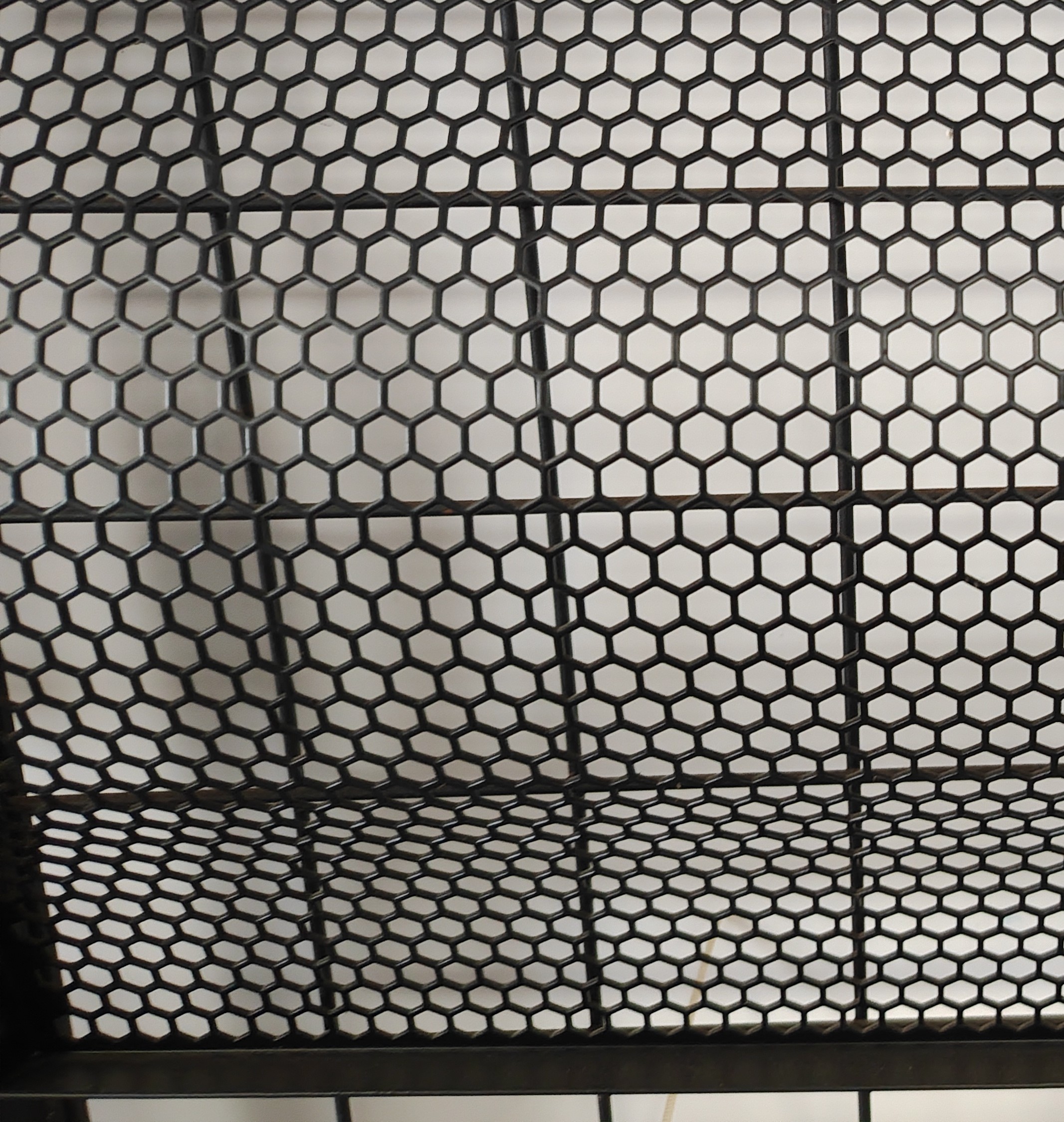

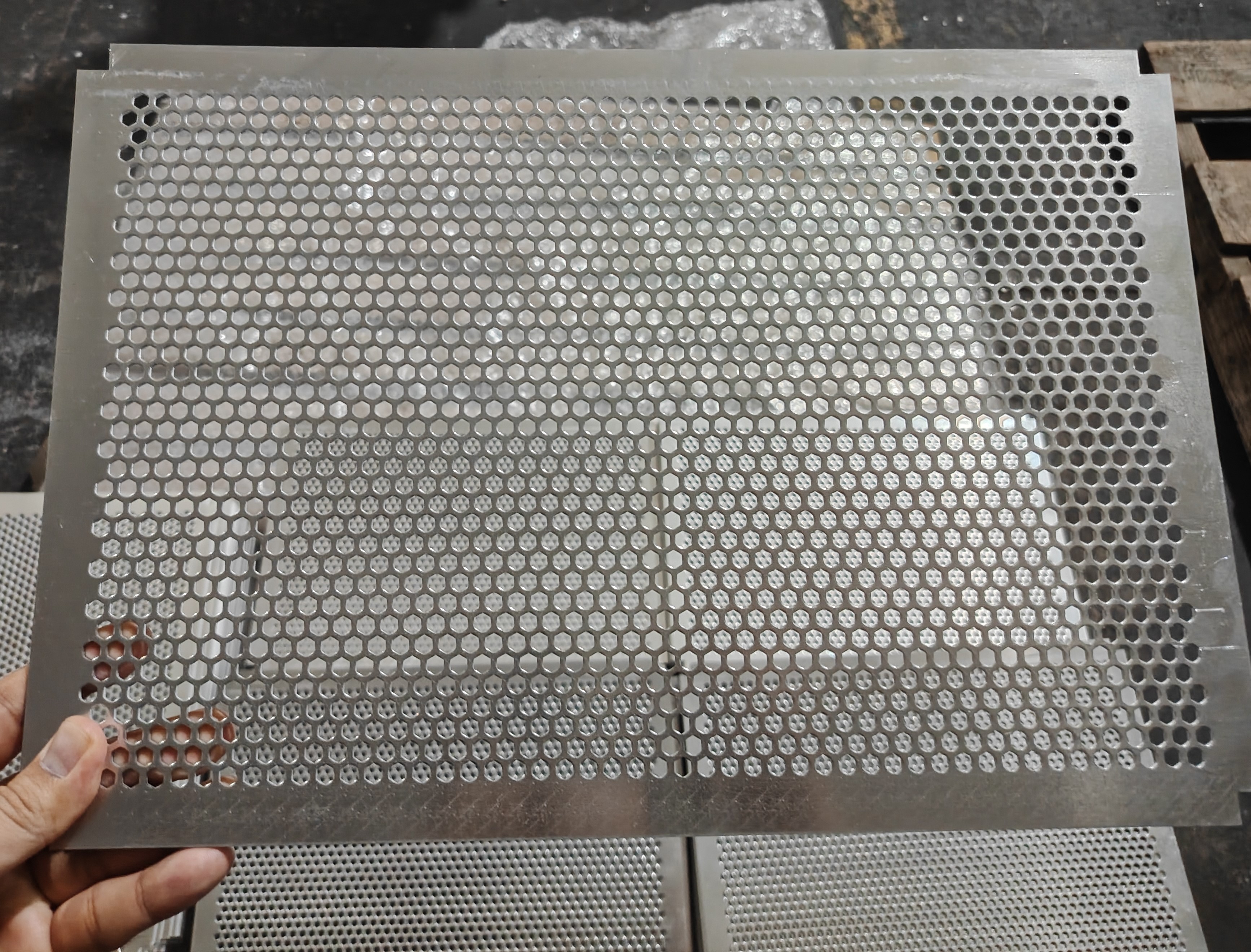

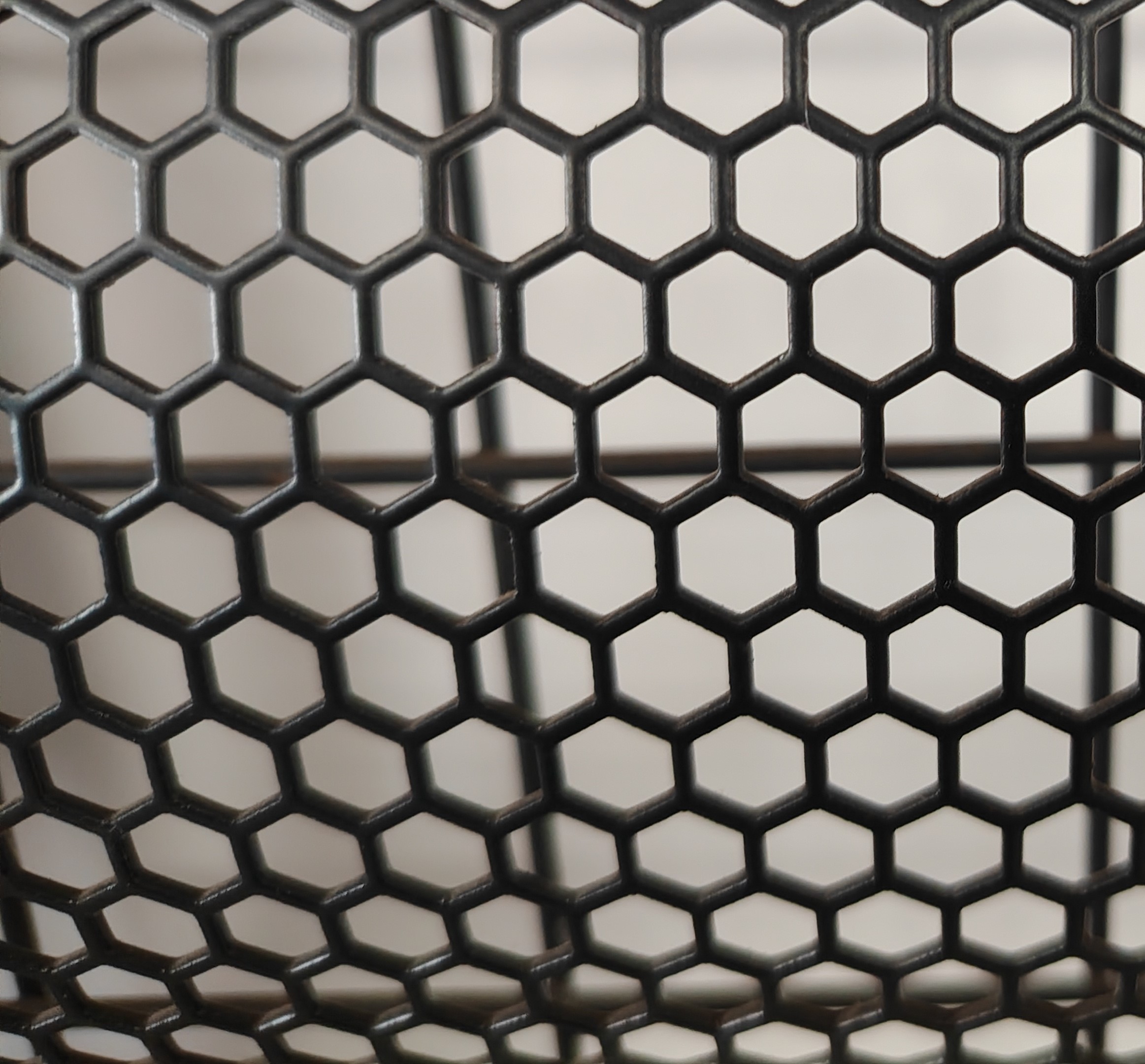

Hexagonal perforated sheet is widely used for projects requiring good airflow, filtration and decorative appearance. Its 60° staggered honeycomb hole layout delivers balanced structural strength while maintaining high open area. Architects and designers often match this panel with Decorative Perforated Panels for integrated exterior wall and interior decorative solutions. Structural design references for metal cladding panels can be found in technical documents published by ASCE Engineering.
Common application scenarios for hexagonal perforated metal include building facade decoration, filter sieve plates, mechanical equipment protective covers, noise barrier panels, ventilation grilles, speaker mesh and safety guardrails. The staggered hexagonal hole pattern offers consistent airflow and easy cutting & bending fabrication. For complete building enclosure system design, many specifiers pair this sheet with Anti-Slip Perforated Panels to meet multi-functional requirements. Tolerance standards for sheet metal punching fabrication are defined by ISO Standards.
Hexagonal perforated sheet standard parameters. Custom punching, bending and cut-to-size service are available.
| Hex Hole Size (Across flats, mm) | Pitch (Center to Center, mm) | Recommended Plate Thickness (mm) |
|---|
| 6 | 8 | 0.5–0.8 |
| 8 | 10.5 | 0.8–1.2 |
| 10 | 13 | 1.0–1.5 |
| 12 | 16 | 1.2–2.0 |
| 15 | 19.5 | 1.5–2.5 |
| 20 | 26 | 2.0–4.0 |
Standard full sheet dimensions: 1000×2000mm, 1220×2440mm, 1250×2500mm, 1500×3000mm.
Material options: Hot dipped galvanized steel, Q235 carbon steel, aluminum alloy, SS304 stainless steel.
Pattern options: 60° staggered hexagonal honeycomb hole arrangement.
Surface treatment: Hot dipped galvanized, powder coated, natural aluminum, brushed stainless steel.
Readers can learn metal punching and forming techniques from technical guides released by Metal Construction Association.
When designing projects with hexagonal perforated sheet, hole size, plate thickness and center pitch must match airflow and load requirements. Larger hexagonal holes provide higher ventilation rate, but thicker substrate is required to maintain panel rigidity. The 60° staggered layout evenly distributes point loads and improves overall panel stability. Research on acoustic properties of perforated metal panels can be explored in research papers published by Acoustical Society of America. Long-term galvanized coating corrosion performance data is documented in Corrosion Science Journal.
Our hexagonal perforated sheets comply with global construction and metal material specifications. Galvanized base material follows ASTM A653 coating requirements, and hot dip galvanizing quality follows ISO 1461. Architectural facade application references are introduced on Architectural Digest. All finished sheets pass dimensional and visual inspection before shipment. Coating inspection specifications are defined by Society for Protective Coatings.
An environmental equipment manufacturer previously used ordinary round-hole perforated sheet for air filter housings. Round holes caused uneven airflow and poor structural stability, leading to panel vibration and noise during long operation. They replaced it with our galvanized hexagonal perforated sheet with 10mm hex holes. The honeycomb hexagonal layout stabilized airflow and increased panel rigidity. Vibration was reduced greatly, and galvanized surface resisted moisture corrosion. Welding and assembly guidance for perforated metal assemblies can be found at American Welding Society. Material load testing methodology can be checked on National Institute of Standards and Technology.

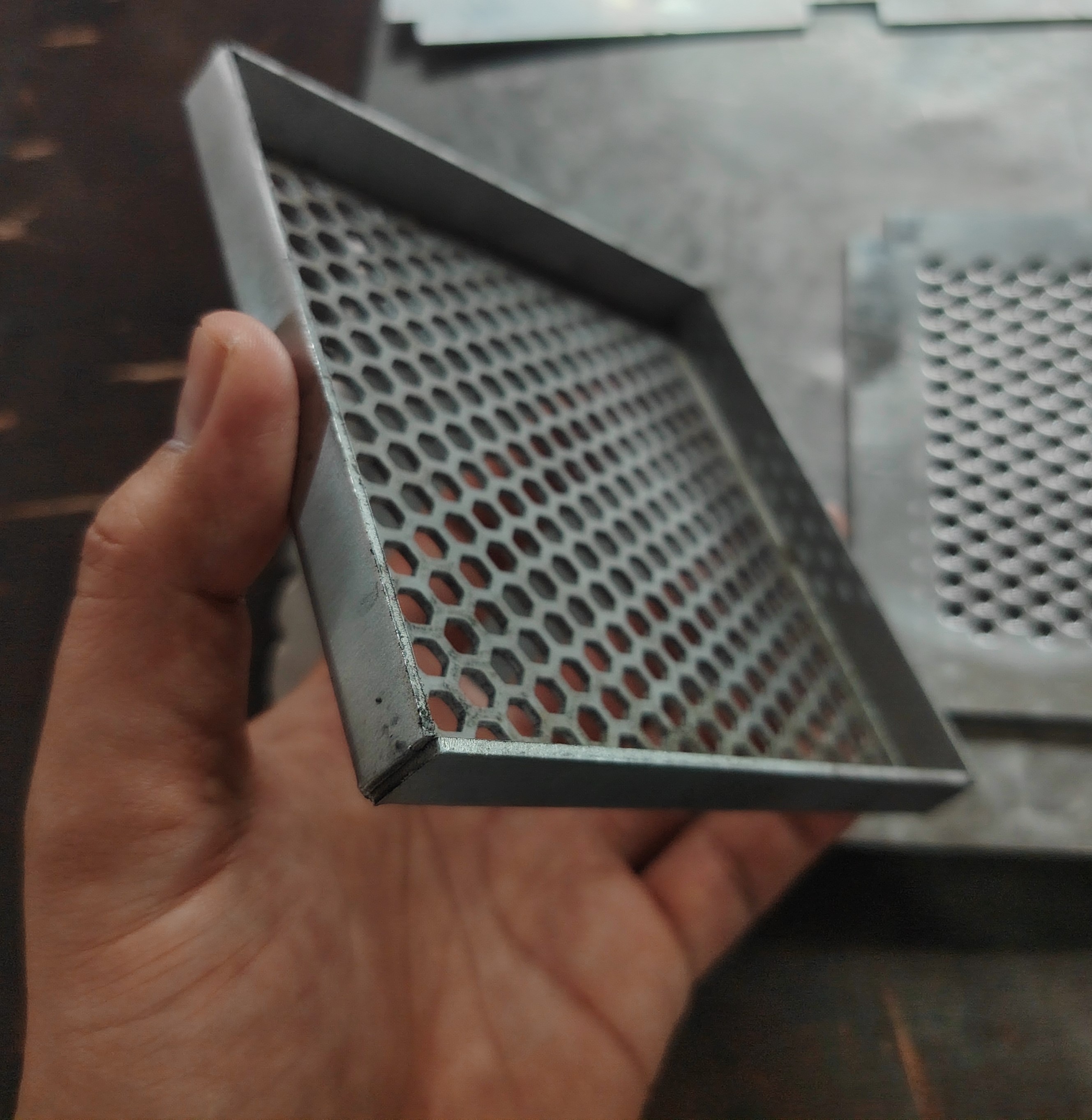

Hexagonal perforated sheet delivers balanced ventilation, filtration and decorative performance for building and industrial projects. CNC precision punching ensures uniform hexagonal hole shape and consistent hole spacing. This sheet can be cut, bent and fabricated to fit custom facade or equipment dimensions. Galvanized, aluminum or stainless substrates can be selected according to different corrosive environments. Installation manuals for sheet metal cladding are published by Sheet Metal and Air Conditioning Contractors' National Association.
Material mechanical test results can be reviewed in Journal of Materials Engineering and Performance. Building specifiers can get facade design advice from Construction Specifier Magazine. Structural metal panel research papers are published by International Journal of Steel Structures. Metal fabrication engineering resources are hosted by Steel Construction Institute.
