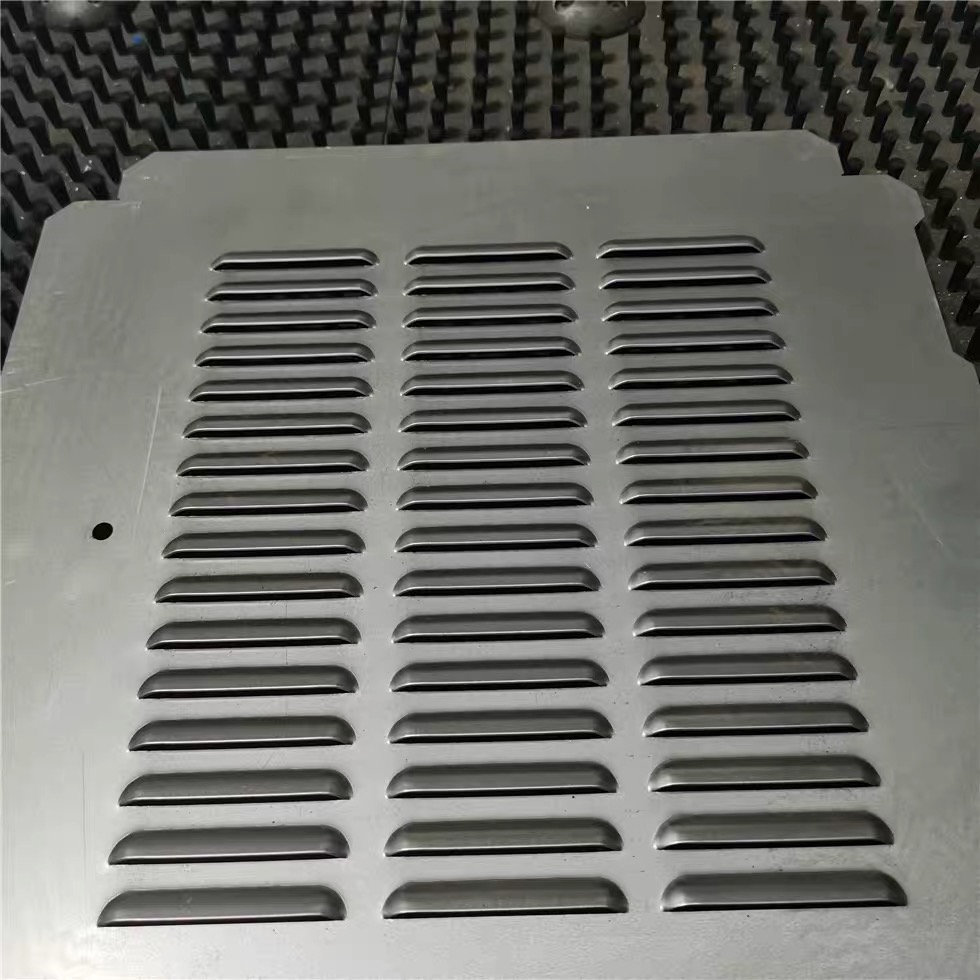

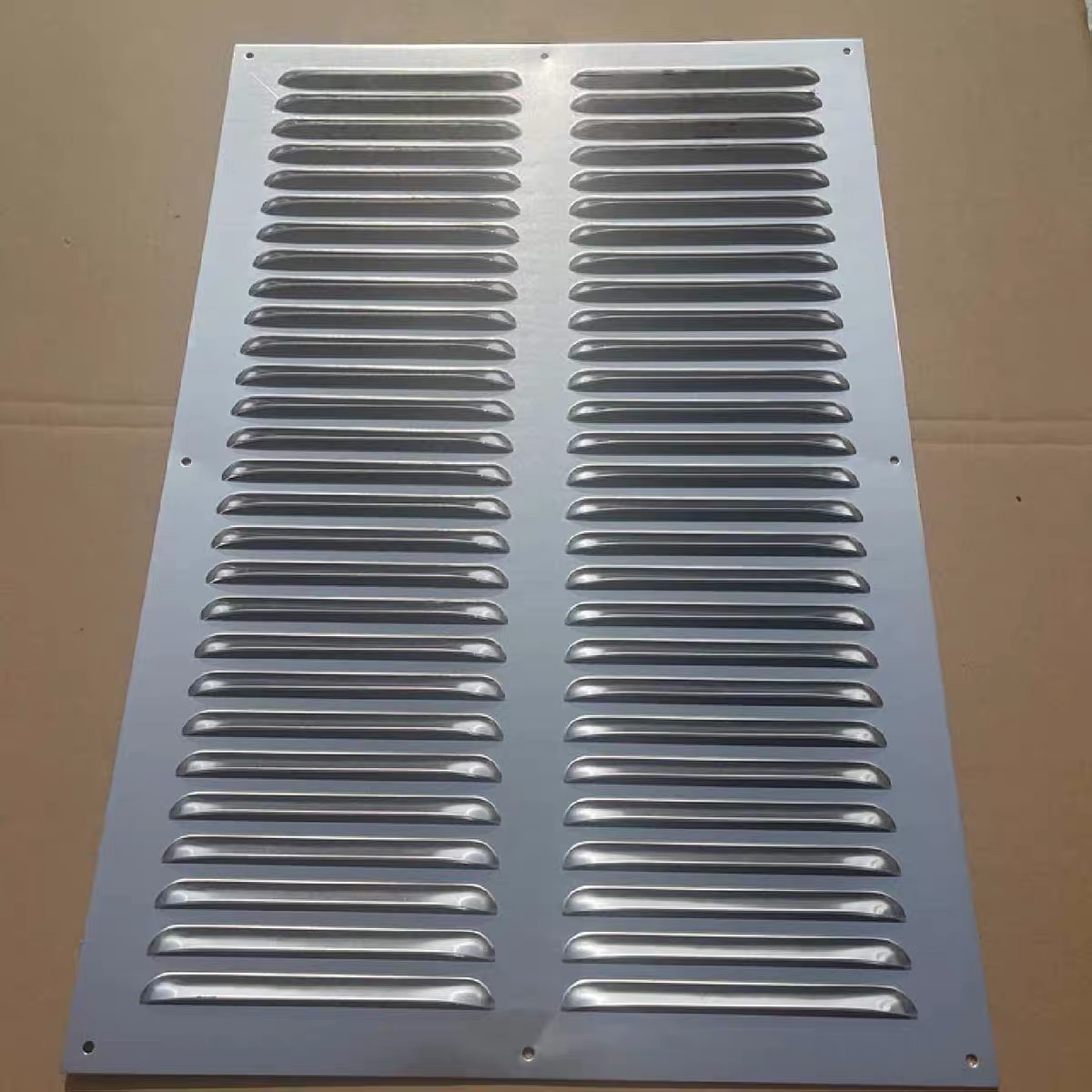

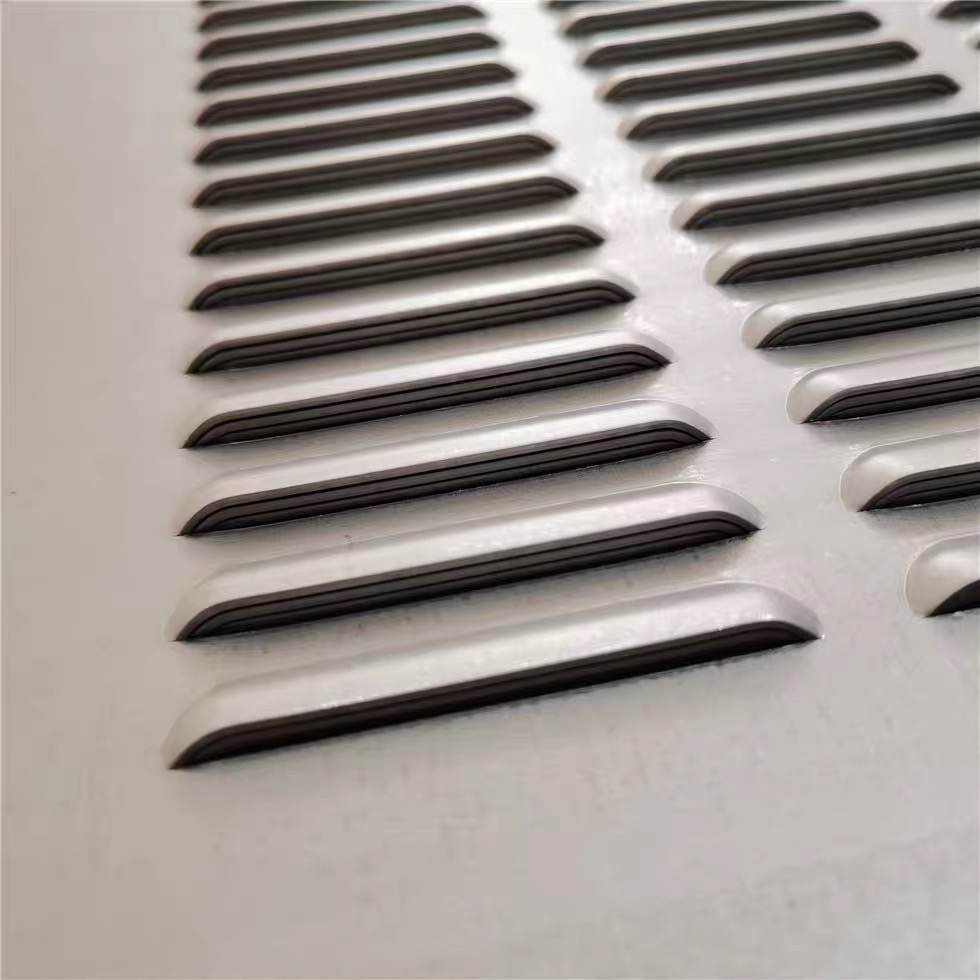

Louver perforated sheet is widely adopted for projects requiring air circulation, rain protection and dust shielding. Its stamped folded louver slot design allows air to pass through while preventing rain from penetrating inward. Architects and designers often match this product with Decorative Perforated Panels for integrated exterior wall and ventilation solutions. Structural specification references can be found in technical documents published by ASCE Engineering for metal cladding design.

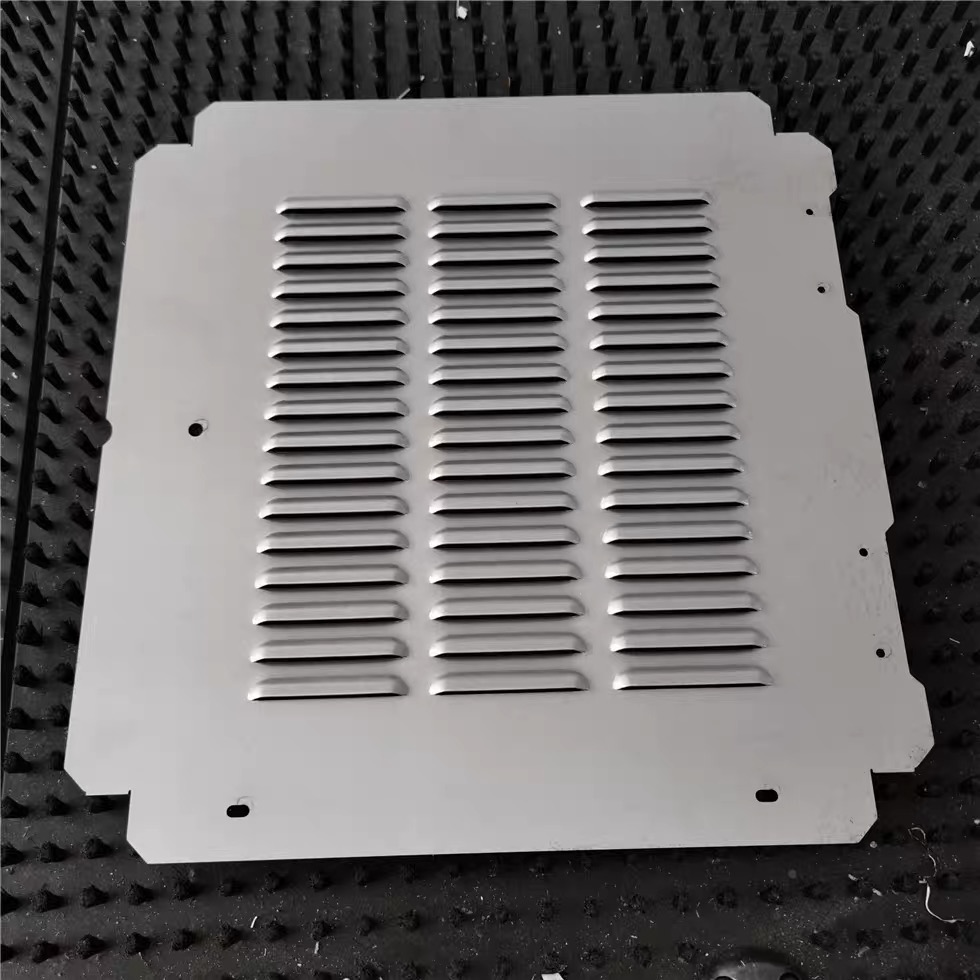

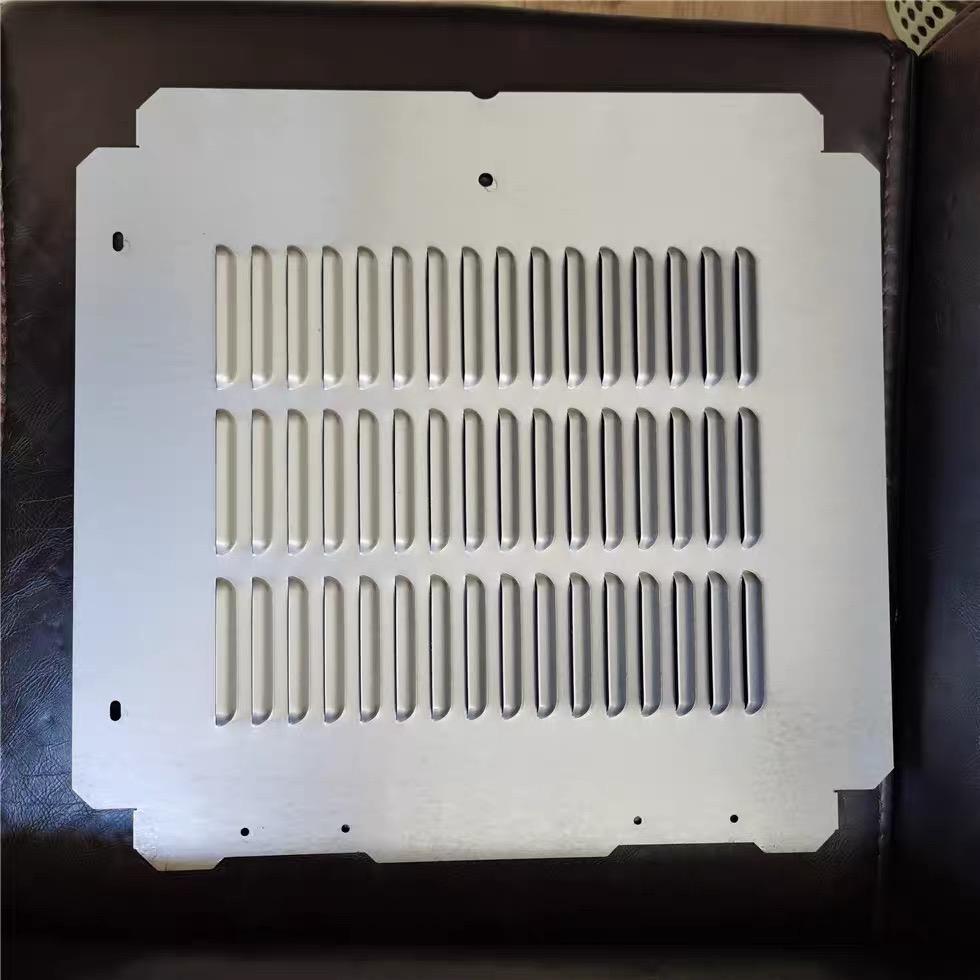

Typical applications of louver perforated metal include electrical cabinet ventilation covers, equipment air intake grilles, noise barrier panels, building facade ventilation screens and machine protective housings. The straight-row louver layout delivers stable airflow and simple fabrication. For complete building ventilation system design, many specifiers combine this sheet with Anti-Slip Perforated Panels to meet multiple functional demands. Tolerance standards for sheet metal stamping are defined by ISO Standards.
Louver perforated sheet standard parameters. Custom punching and cut-to-size service are available.
| Slot Size (Length × Width, mm) | Pitch (Row Center Spacing, mm) | Recommended Plate Thickness(mm) |
|---|
| 8×3 | 16 | 0.6–0.8 |
| 10×4 | 20 | 0.8–1.0 |
| 12×5 | 25 | 1.0–1.2 |
| 16×6 | 30 | 1.2–1.5 |
| 20×8 | 35 | 1.5–2.0 |
| 25×10 | 40 | 2.0–3.0 |
Standard full sheet dimensions: 1000×2000mm, 1220×2440mm, 1250×2500mm, 1500×3000mm.
Material options: Hot dipped galvanized steel, aluminum alloy, SS304 stainless steel, mild carbon steel.
Pattern options: Straight row louver slot arrangement.
Surface treatment: Hot dipped galvanized, powder coated, natural aluminum, brushed stainless steel.
Readers can learn metal stamping and forming techniques from technical guides released by Metal Construction Association.
When designing with louver perforated sheet, slot dimension, plate thickness and row pitch should be matched with airflow requirement. Wider louver slots bring higher ventilation rate, but thicker substrate is required to maintain panel rigidity. The straight-row layout keeps uniform air distribution across the whole panel. Research about acoustic performance of perforated metal can be found in papers published by Acoustical Society of America. Long-term corrosion performance of galvanized sheet is documented in Corrosion Science Journal.
Our louver perforated metal panels comply with global construction and metal material specifications. Galvanized base material follows ASTM A653 requirements, and hot dip galvanizing quality follows ISO 1461. Industrial facade application cases are introduced on Architectural Digest. All finished panels go through dimensional inspection before shipment. Coating inspection specifications are defined by Society for Protective Coatings.
A power equipment manufacturer previously used simple flat mesh for cabinet air vents. The flat mesh could not stop rain and dust, resulting in frequent internal component contamination and equipment failure. They replaced the mesh with our galvanized louver perforated sheet with 12×5 louver slots. The folded louver flaps kept rain out while maintaining good airflow. Equipment fault rates were greatly reduced, and galvanized surface resisted rust in outdoor conditions. Welding and assembly guides for perforated metal assemblies are available at American Welding Society. Material load test methodology can be checked on National Institute of Standards and Technology.
Louver perforated sheet provides stable ventilation and rainproof performance for outdoor and indoor equipment enclosures. CNC precision stamping guarantees consistent louver shape and uniform slot spacing. This sheet can be cut, bent and fabricated to fit custom cabinet or facade dimensions. Galvanized, aluminum or stainless substrates can be selected according to different corrosion environments. Installation manuals for sheet metal cladding are published by Sheet Metal and Air Conditioning Contractors' National Association.
Material mechanical test data can be reviewed in Journal of Materials Engineering and Performance. Building specifiers can get facade design advice from Construction Specifier Magazine. Structural metal panel research papers are published by International Journal of Steel Structures. Metal fabrication engineering resources are hosted by Steel Construction Institute.
