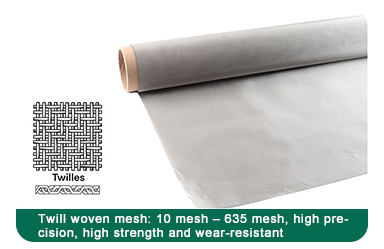

Twill weave wire mesh is widely used in industries requiring high precision filtration and particle separation. Its two-over-two-under twill weaving method creates compact mesh structure and better load bearing capacity compared with plain weave mesh. Architects and filter equipment designers often match this woven mesh with Decorative Perforated Panels for combined filtration and facade ventilation solutions. Structural design references for metal screen panels can be found in technical documents published by ASCE Engineering.
Common application scenarios for twill woven wire mesh include chemical liquid filtration petroleum filtering food processing separation pharmaceutical screening high temperature gas filtration and precision mechanical protective screens. The tight twill structure delivers consistent fine particle retention performance and easy cutting bending fabrication. For complete industrial filtration system design many specifiers pair this mesh with Anti-Slip Perforated Panels to meet multi-functional safety requirements. Tolerance standards for woven wire cloth are defined by ISO Standards.
Twill Weave Wire Mesh Standard Parameters
Custom cutting bending and cut-to-size sheet service are available.
| Mesh Count | Aperture (mm) | Wire Diameter (mm) |
|---|
| 40 mesh | 0.335 | 0.30 |
| 60 mesh | 0.21 | 0.23 |
| 80 mesh | 0.15 | 0.17 |
| 100 mesh | 0.12 | 0.14 |
| 150 mesh | 0.099 | 0.07 |
| 165 mesh | 0.096 | 0.058 |
| 180 mesh | 0.083 | 0.058 |
| 200 mesh | 0.069 | 0.058 |
| 250 mesh | 0.062 | 0.04 |
| 300 mesh | 0.05 | 0.035 |
| 400 mesh | 0.038 | 0.028 |
| 500 mesh | 0.025 | 0.02 |

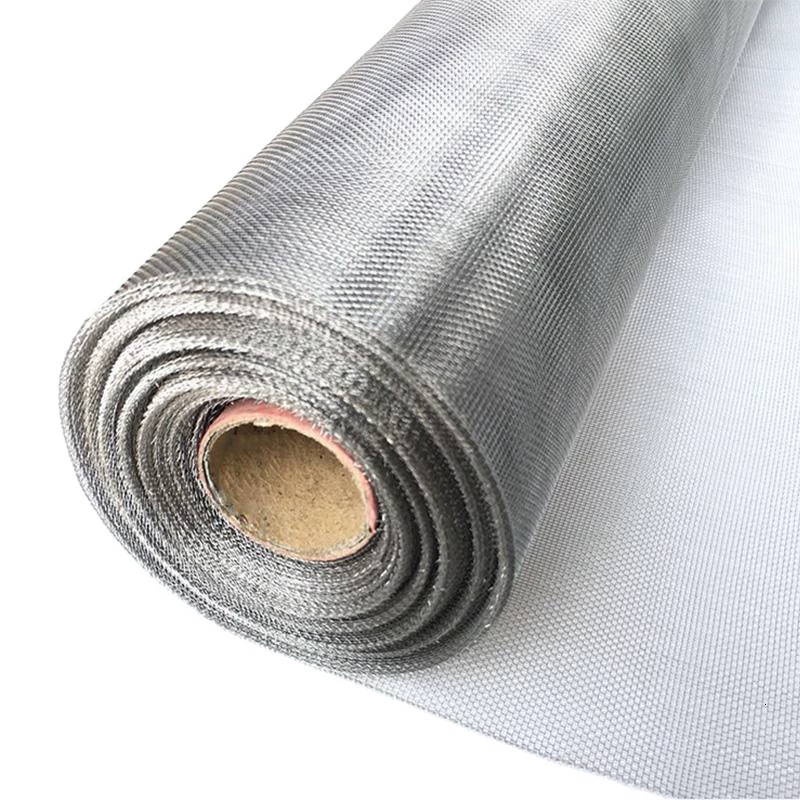

Standard roll width 1000mm 1220mm 1500mm 2000mm Standard roll length 30m 50m 100m
Cut sheet sizes 1000×2000mm 1220×2440mm 1250×2500mm 1500×3000mm
Material options SS304 304L 316 316L stainless steel phosphor bronze wire nickel wire
Pattern options Twill weave square opening
Surface treatment Electro-polished pickling passivation
Readers can learn metal wire weaving techniques from technical guides released by Metal Construction Association.
When selecting twill weave wire mesh mesh count aperture and wire diameter must match precision filtration requirements. Higher mesh count delivers ultra-fine aperture for tiny particle interception thicker wire improves tensile strength for high pressure working environments. The twill weave layout ensures uniform opening distribution and stable mesh geometry. Research on filtration performance of woven metal mesh can be explored in research papers published by Acoustical Society of America. Long-term metal corrosion performance data is documented in Corrosion Science Journal.
Our twill weave wire mesh complies with global woven wire cloth specifications. Stainless steel mesh follows ASTM E2016 weaving tolerance complies with ISO 9044. Industrial filter application references are introduced on Architectural Digest. All finished mesh rolls and cut sheets pass dimensional inspection before shipment. Coating inspection specifications are defined by Society for Protective Coatings.
A chemical processing manufacturer previously used plain weave mesh for fine liquid filtration. The mesh deformed easily under high pressure leading to particle leakage. They switched to our SS316L twill weave wire mesh of 200 mesh. Compact twill structure guaranteed stable filtration efficiency and 316L stainless steel resisted strong acid and alkali corrosion. Welding and assembly guidance for metal mesh assemblies can be found at American Welding Society. Material tensile load testing methodology can be checked on National Institute of Standards and Technology.
Twill weave wire mesh delivers reliable high precision filtration performance for industrial and chemical projects. Precision twill weaving guarantees uniform square hole shape and consistent aperture size. This mesh can be cut bent and fabricated into custom filter discs or protective panels. Stainless phosphor bronze or nickel materials can be selected according to different corrosive environments. Installation manuals for metal screen cladding are published by Sheet Metal and Air Conditioning Contractors' National Association.
Material mechanical test results can be reviewed in Journal of Materials Engineering and Performance. Building specifiers can get screen facade design advice from Construction Specifier Magazine. Structural metal panel research papers are published by International Journal of Steel Structures. Metal fabrication engineering resources are hosted by Steel Construction Institute.
Twill weave wire mesh twill woven wire cloth stainless steel twill weave mesh 304 twill filter mesh 316L twill woven mesh phosphor bronze twill mesh high precision filter mesh square opening twill wire mesh chemical filtration twill mesh petroleum filter screen food grade twill wire mesh pharmaceutical sieve mesh high temperature resistant twill mesh custom cut twill weave mesh twill mesh 1220mm width twill mesh roll 30m 40mesh twill screen 60mesh twill filter cloth 80mesh twill woven mesh 100mesh twill sieve mesh 150mesh fine twill mesh 200mesh stainless twill cloth 250mesh ultra fine twill screen 300mesh precision filter mesh 400mesh twill wire cloth 500mesh micro twill mesh ISO certified twill weave wire mesh ASTM woven wire cloth custom woven wire mesh manufacturer wire mesh supplier China industrial fine sieving mesh high pressure filter screen
Looking for twill weave wire mesh with custom mesh count wire diameter or cut sheet size Send your filtration requirements our engineering team will provide free technical assessment and competitive quotation for your twill woven wire cloth project
